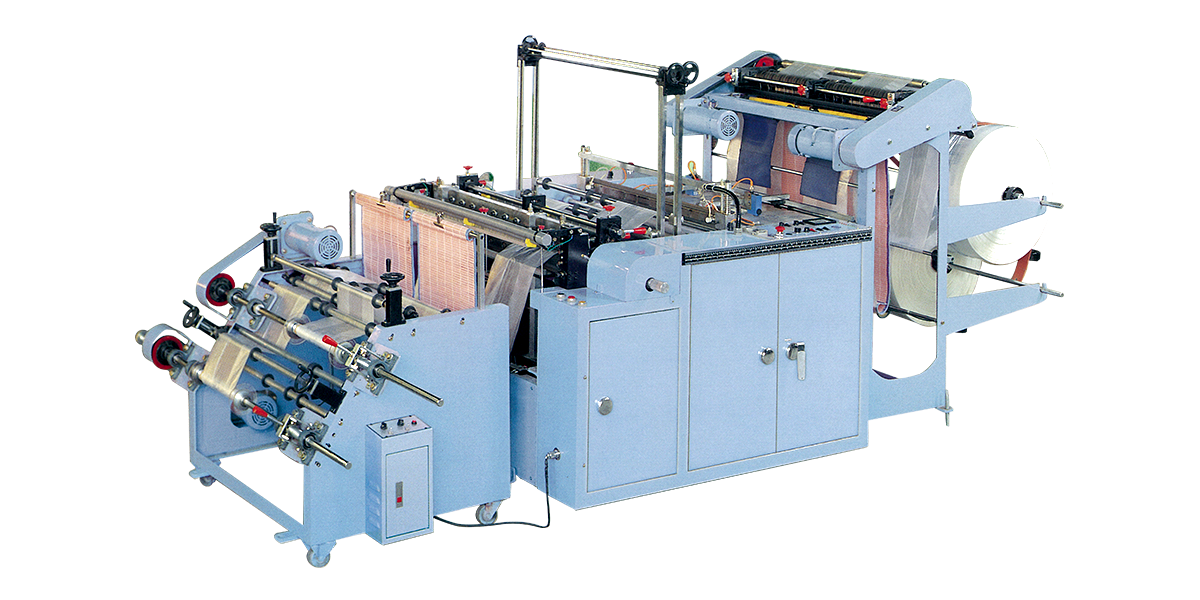

JCH2(S) Bag on Roll Making Machine

• Computer control over the entire process
• Bag On Roll Making Machine from film roll to final bag, one process flow
• Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
• Automatic film feeding, coordination free from tension adjustment
• Automatically stop when running out of film
• Automatically stop when film feeding blocks or bags jam
• Automatically stop when color scanning misses
• High production bag on roll making machine efficiency to save manpower and time.
• Bag on roll making machine can production 2 & 4 lines , according to customer requirements.

OPTIONS

• Rewinder by pneumaric
• Rewinder with core or coreless both
• Tension sealing knife or tension less sealing knife
• In-line conveyor
