TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE : KMTL-65
产品分类 : 吹膜挤出机
The KMTL-65 is a two-layer HDPE/LDPE/LLDPE high-speed plastic inflation (blown film extrusion) machine, producing two-layer PE film at widths up to 2,000 mm for applications such as car film and food plastic wrap.The extruder uses a Ø 65mm x 2 screw with a 28:1 L/D ratio and a 50 HP AC driving motor with inverter. The die unit is fitted with a Ø500 mm die and Ø550 mm air ring. Film thickness ranges from 0.03 to 0.15 mm, output reaches 60-250 kgs/hr, and the take-up unit runs at speeds up to 40 m/min.Model: KMTL-65Suitable material: HDPE/LDPE/LLDPEFilm thickness: 0.03-0.15 mmFilm width range: 2000 mmFilm output: 60-250 kgs/hrScrew diameter/type: Ø 65mm x 2, L/D ratio 28:1Driving motor: AC 50 HP + InverterDie diameter: Ø500 mm / Air ring diameter: Ø550 mmTake-up speed: 40 m/min
TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE : KMTL-55
产品分类 : 吹膜挤出机
The KMTL-55 is a two-layer HDPE/LDPE/LLDPE high-speed plastic inflation (blown film extrusion) machine, producing two-layer PE film at widths up to 1,400 mm for applications such as car film and food plastic wrap.The extruder is built around a Ø 55mm x 2 screw with a 28:1 L/D ratio and a 30 HP AC driving motor with inverter. The die unit uses a Ø350 mm die and Ø400 mm air ring. Film thickness ranges from 0.025 to 0.15 mm, output reaches 20-150 kgs/hr, and the take-up unit runs at speeds up to 45 m/min.Model: KMTL-55Suitable material: HDPE/LDPE/LLDPEFilm thickness: 0.025-0.15 mmFilm width range: 1400 mmFilm output: 20-150 kgs/hrScrew diameter/type: Ø 55mm x 2, L/D ratio 28:1Driving motor: AC 30 HP + InverterDie diameter: Ø350 mm / Air ring diameter: Ø400 mmMachine dimension: 500x500x800 cm
TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE : KMTL-40/45
产品分类 : 吹膜挤出机
The KMTL-40/45 is a two-layer high-speed plastic inflation machine for blown film extrusion of HDPE, LDPE, and LLDPE resins, producing 2-layer PE film up to 800 mm (KMTL-40) or 900 mm (KMTL-45) wide for applications such as car film and food plastic wrap.The KMTL-40 runs twin Ø40mm screws with a 20 HP AC driving motor and 6-zone auto thermo control, producing film at 15-70 kgs/hr; the KMTL-45 runs twin Ø45mm screws with the same 20 HP AC driving motor and 2-zone auto thermo control, producing film at 20-90 kgs/hr. Both models operate at a 26:1 L/D ratio and a take-up speed of 70 m/min.Models: KMTL-40 / KMTL-45Suitable material: HDPE/LDPE/LLDPE (both)Film thickness: 0.010-0.15 mm (both)Film width range: KMTL-40 800 mm; KMTL-45 900 mmFilm output: KMTL-40 15-70 kgs/hr; KMTL-45 20-90 kgs/hrScrew diameter/type: KMTL-40 Ø40mm x2; KMTL-45 Ø45mm x2 (L/D ratio 26:1 both)Driving motor: AC 20 HP + Inverter (both)Take-up speed: 70 m/min (both)Machine dimension: KMTL-40 450×200×400 cm; KMTL-45 470×220×450 cm
TWIN HEAD(A/B/A LAYER) HDPE / LDPE / LLDPE PLASTIC INFLATION MACHINE : KMTL-4545T
产品分类 : 吹膜挤出机
The KMTL-4545T is a twin head (A/B/A layer) HDPE/LDPE/LLDPE plastic inflation machine that produces double output film at widths up to 400 mm per head, for applications such as car film and food plastic wrap.Each head runs a Ø 45mm screw with a 28:1 L/D ratio, driven by a 20 HP AC motor with inverter. The ABA die unit uses Ø60/80 mm dies with a Ø120 mm air ring per head. Film thickness ranges from 0.010 to 0.10 mm, output reaches 10-32 kgs/hr per head, and the take-up unit runs at speeds up to 85 m/min.Model: KMTL-4545TSuitable material: HDPE/LDPE/LLDPEFilm thickness: 0.010-0.10 mmFilm width range: 400 mm x 2Film output: 10-32 kgs/hr x 2Screw diameter/type: Ø 45mm x 2, L/D ratio 28:1Driving motor: AC 20 HP + InverterDie diameter (ABA): Ø60/80 mm x 2 / Air ring diameter: Ø120 mm x 2Take-up speed: 85 m/min
Three-Layer Co-Extrusion Blown Film Machine KS-ML3-95-110-95
产品分类 : 吹膜挤出机
Wide-Width, High-Output Three-Layer Blown Film Solution for Packaging Applications The KS-ML3-95-110-95 Three-Layer Co-Extrusion Blown Film Machine is a high-performance blown film line developed by KUNG HSING Plastic Machinery for lamination films, shrink films, and food packaging applications. By integrating European key components, intelligent control systems, and advanced cooling and thickness measurement technologies, this machine delivers stable production, excellent gauge uniformity, and consistent film quality, even under wide-width and high-output operating conditions.
THREE LAYER BLOWN FILM EXTRUDER PLASTIC INFLATION MACHINE : KMTL-E3
产品分类 : 吹膜挤出机
The KMTL-E3 is a three-layer HDPE/LDPE/LLDPE/mLDPE blown film extrusion line offered in three sizes, with film widths from 900 to 1,800 mm and thickness from 0.02 to 0.20 mm, suited to car film, food packaging, and courier bags.The line comprises the KMTL-40-45-40 E3, KMTL-45-55-45 E3, and KMTL-55-65-55 E3 configurations, with screw diameters of Ø 40-45-40 mm, Ø 45-55-45 mm, and Ø 55-65-55 mm (28:1 L/D ratio), driven by 15-20-15 HP, 20-30-20 HP, and 30-50-30 HP AC motors with inverter. Film output ranges from 110 to 250 kgs/hr across the three sizes.Model line: KMTL-40-45-40 E3 / KMTL-45-55-45 E3 / KMTL-55-65-55 E3Suitable material: HDPE/LDPE/LLDPE/mLDPEFilm thickness: 0.02-0.15 mm / 0.025-0.20 mm / 0.03-0.20 mmFilm width range: 900 mm / 1400 mm / 1800 mmFilm output: 110 kgs/hr / 150 kgs/hr / 250 kgs/hrScrew diameter/type: Ø 40-45-40 mm / Ø 45-55-45 mm / Ø 55-65-55 mm, L/D ratio 28:1Driving motor: AC 15-20-15 HP / 20-30-20 HP / 30-50-30 HP + InverterDie diameter: Ø200 mm / Ø300 mm / Ø500 mmTake-up speed: 65 m/min / 45 m/min / 40 m/min
压空成型机KIEFEL KTR 5.1
产品分类 : 热成型模具
专为 KIEFEL KTR 5.1 热成型机设计的热成型模具。配备模内切削工具，此机器可同时进行成型与切削，非常适合制作需要精准切削边缘的杯子与产品。
Hot plate heating type forming tools
产品分类 : 热成型模具
热板加热式成型模具主要用于生产 OPS 产品，如容器、托盘与盖子等。续接的后处理流程则需要进行连续裁切。
Core technologies
产品分类 : 热成型模具
For special steel knife, we can design cutting-knife according to the shape.
PP Blown Film Machine
产品分类 : 吹膜挤出机
Water cooling system makes glossier and more transparent PP film for food or garment packing. Unique screw provides high production for a long period life and holds film uniformly steady. Dry chamber provides a fast water removal, for food package purpose. Optional tension control for winder provides good tension film in rolls, used in food packaging & printing. We didn’t show all our models, please don’t hesitate to contact us for bigger extruders.
3 Layer Co Extrusion Blown Film Machine
产品分类 : 共挤吹膜机
Application for greenhouse sheet, agricultural films, construction sheets, food packaging, sacks, shrink films, shrink hood films, and more. Max. film width of up to 4.2 m (8.4 m for single-layer-opened films) It supports a wide range of raw materials such as HDPE, LDPE, LLDPE, EVA, MPE, PP, and others. The machine is equipped with three sets of gearboxes and motors for independent control. Optionally, a 360º Oscillating Nip roller device can be added to ensure uniform film thickness and improve the performance of the rotary die device. The machine can be equipped with a "Waste Film Recycling Machine" which enables direct feeding of waste film into the screw, eliminating any waste plastic film and reducing costs. Please note that the models shown here are not exhaustive. If you require larger extruders, please feel free to contact us.
Multi Layer 系列
产品分类 : 电动中空成型机
-VS系列：可增加一条透明白线于容器侧边，可方便看到内容物存量，如机-TC系列：适合生产双色之塑胶容器或玩具。 -TL系列：用以生产双层之容器，可节省高价材质用量，一般常用于化妆品或洗发精瓶。
Co-Extrusion Cast Film Line For Food packaging
产品分类 : 薄膜和片材挤出生产线
Co-Extrusion Cast Film Line for Food packaging
HDPE / LDPE / LLDPE (A/B/A) TWO LAYER : KMTL-50S
产品分类 : 吹膜挤出机
The KMTL-50S is a 2-layer ABA blown film extrusion line for HDPE, LDPE, and LLDPE film, used in applications such as car film, food packaging, and courier bags.The extruder unit runs Ø 50mm ×2 screws with a 30:1 L/D ratio and 25.8 kw of heating capacity across 8 auto thermo zones, feeding a rotating die (die diameter H: 100/150 mm, A/B/A) with a Ø 165 mm air ring for bubble cooling. A servo-driven take-up (1.5 kw) and winding unit (1 kw) handle the film at speeds up to 100 m/min, producing film from 0.010-0.15 mm thick and up to 1200 mm wide.Model: KMTL-50SSuitable material: HDPE / LDPE / LLDPEFilm thickness: 0.010-0.15 mmFilm width range: 1200 mmFilm output: 90-140 kgs/hrScrew diameter: Ø 50mm ×2, L/D ratio 30:1Die diameter: H: 100/150 mm (A/B/A)Driving motor: AC 30 HP + InverterTake-up speed: 100 m/min
Extrusion Sheet Extrusion Machine For Food Packaging, Disposable Tableware
产品分类 : 薄膜和片材挤出生产线
Extrusion Sheet Extrusion Machine For Food Packaging,
食品级 PET 瓶回收清洗生产线
产品分类 : 按应用分类的回收生产线
宝绿特食品级PET瓶回收清洗线主要配套用于食品级再生PET切片项目 (Bottle-to-Bottle)，将消费后的宝特瓶回收清洗成再生PET瓶片，该回收后的PET瓶片符合下游食品包装原料加工的质量指标要求，经过后段造粒增粘应用于直接接触食品的吹瓶与吸塑盒等包装用途。 食品级PET瓶清洗的工艺相对于普通PET回收更为复杂，对于设备的要求及最终成品的质量要求更为严格。同时要求业主具有更完善的工厂管理水平及先进的生产工艺技术。宝绿特食品级清洗线运行自动化程度高, 在最大程度上避免人为失误。超洁净的整瓶及瓶片清洗，高效的混料及在线检验系统，保证产出再生PET瓶片符合后道食品级加工的标准（可通过美国FDA认证）。同时，宝绿特食品级PET瓶回收清洗生产线可根据客户实际所需生产原料的差异性以及各地域原料的特性，对设备和整线工艺进行配置调整及优化，以最少的成本投入，最小的占地面积，最尖端的工艺技术 ，满足不同客户的下游生产应用所需。凭借20多年PET瓶回收生产经验，将给予客户一对一的在线生产指导及工艺指南。 宝绿特PET瓶回收整线采用SCADA系统和与PLC控制器进行联动控制、大屏幕人机交互系统可直观和有效的掌握整线各单元及设备的工艺参数，同时可对整线所有重要的工艺参数进行实时采集和记录，甚至我们结合了物联网远程通讯技术,让客户与宝绿特实现零距离沟通，给予客户实时指导。宝绿特可协助客户进行实践生产管理、数据分析与设备维护。除此，整线配置全自动材质分拣机和颜色分拣机大大缩减人力资源的投入，大幅提高生产效率，从而真正实现高度自动化的清洁回收生产线。 PET瓶砖经过食品级PET瓶清洗系统的分拣，清洗，粉碎后最终获得高质量的再生PET瓶片，多家宝绿特知名品牌客户已获得PET再生瓶片的FDA认证，并供货产品于下游一流品牌饮料厂商。 宝绿特通过对各国原料的分析测试，针对特定国家和地区的PET瓶原料，正在研发一整套短制程工艺的PET瓶回收清洗系统，该系统单元集成多种功能，大大减少设备占地及人员用工数量，同时又能满足食品级及超细旦级PET再生原料的各项指标需求。将于2020年末问世。 宝绿特也提供PET瓶到瓶设备及工程服务，请参阅https://www.bo-re-tech.cn/cn/solution/PET-Bottle-to-Bottle-Recycling-Plant.html

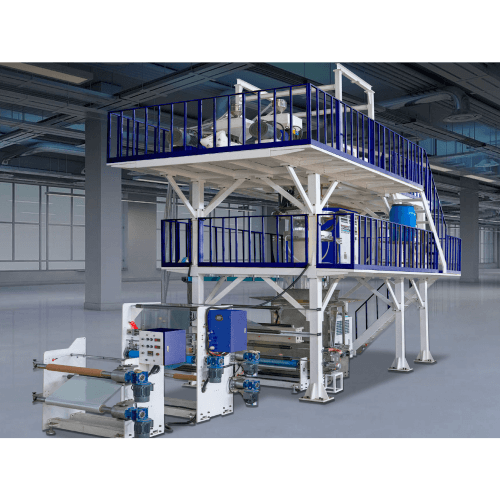

Water cooling blown film machine | HT-AQUA
产品分类 : 吹膜挤出机
Special application for food packaging and medical area HT-AQUA Monolaver PP blown film machine. Multilayer PP blown film machine, Water cooling PA blown film machine.
共挤吹膜机（JC-CX系列）
产品分类 : 共挤吹膜机
The JC-CX series Multi-layer Blown Film Co-Extrusion Line is available in two layer, three layer, and up to five layer configuration based on a modular concept producing variety of quality film over various industries. Combines high output with excellent film quality, the line is designed to produce films for a wide range of application. From general purpose packing film or lamination film, of complex technical film or food packaging with high grade barrier properties, JC-CX series coextrusion blown film line has convincing solution to every customer’s need.
SMP Series: Embossed Double-Wall Soup Cup｜437ml to 700ml Sizes
产品分类 : Rigid Packaging & Containers
The SMP Series by SunNaP is specially designed for hot soup and high-temperature liquid food packaging. With capacities ranging from 437ml to 700ml (approx. 14oz to 24oz), these cups are ideal for takeaway soup, stews, porridges, and other hot, ready-to-eat meals. Each cup features a double-wall structure with an embossed outer surface, providing excellent insulation without the need for additional sleeves. The textured design ensures a firm grip while enhancing brand presentation for restaurants, food stalls, and central kitchens. Made with FSC-certified, food-safe paper, these soup cups are heat-resistant, greaseproof, and leak-proof—offering a reliable, eco-conscious solution for hot food packaging.
