UP-S45GO

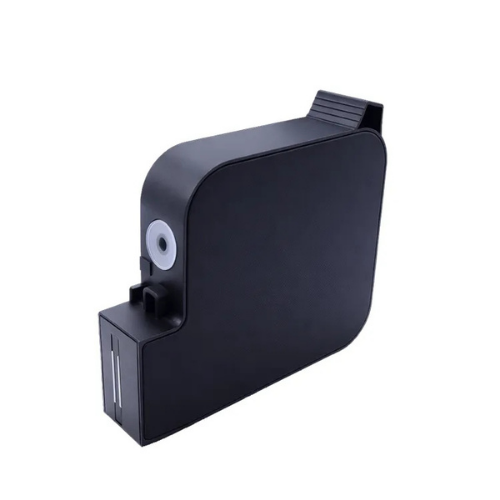

UniPlus 1-Inch 60ml TIJ 2.5 Solvent-Based Industrial Empty Ink Cartridge
25.4 mm Wide Print Swath｜High-Volume Empty Cartridge｜Fill with Your Own Formulation



Product Specifications

Product Name UniPlus 1-Inch 60ml TIJ 2.5 Solvent-Based Industrial Empty Ink Cartridge
Printing Technology TIJ 2.5 Thermal Inkjet Technology
Shipping Condition Unfilled (empty cartridge)
Fillable Capacity 60 ml
Suitable Ink Solvent-based ink
Print Height 1 inch / 25.4 mm / 2.54 cm
Print Resolution Up to 600 DPI
Compatible Equipment Inline TIJ coders supporting 1-inch printheads / large-character printing systems
Supply Options OEM / ODM labelling and custom packaging available





Key Advantages of the UniPlus 1-Inch Solvent Empty Cartridge

1

A Single 25.4 mm Swath Removes the Need to Stitch Cartridges

The 1-inch printhead covers a 25.4 mm height in one pass, so outer-case markings and large-character content no longer need two half-inch cartridges stacked one above the other. That saves the setup time spent aligning the seam and calibrating heights, and avoids barcodes becoming unreadable because of misalignment at the join.

2

60 ml Capacity for Ink-Hungry Large-Area Printing

Large characters, solid graphics and logos consume noticeably more ink than ordinary small-character marking. A 60 ml capacity extends continuous running time and reduces how often the line has to stop mid-production for a cartridge change.

3

Supports Your Own Solvent Ink Formulation

The 1-inch empty cartridge uses the same solvent-resistant body construction, resisting swelling and leakage after filling, so you can take your own formulation straight into volume supply.





Suitable Ink Types and Wide-Format Applications

This product is a 1-inch empty cartridge supplied without ink; actual print performance is determined by the formulation the customer fills it with.

Please note: the instantaneous ink delivery of a 1-inch printhead is higher than that of a half-inch head. Even where a formulation has already been validated at half-inch, we recommend re-confirming viscosity, ink feed responsiveness and continuous-jetting stability when migrating to 1-inch. This empty cartridge is not recommended for water-based, UV-curable or non-solvent inks; please contact UniPlus customer service for those requirements.



Choosing Between Half-Inch and 1-Inch Solvent Empty Cartridges

With its greater print height and fill capacity, the 1-inch empty cartridge suits large-character and outer-case applications. If your marking content is mainly small-character dates and batch numbers, or your existing equipment only supports half-inch printheads, the half-inch empty cartridge is the better fit.

　 1-inch (this product) Half-inch
Fillable capacity 60 ml 42 ml
Print height 1 inch / 25.4 mm 0.5 inch / 12.7 mm
Filling workload per batch Fewer operations, larger volume each time More operations, smaller volume each time
Equipment requirements Requires equipment supporting 1-inch printheads, or a retrofit Compatible with most non-encrypted half-inch equipment
Typical filling applications Large characters, logos, outer-case coding formulations Small characters, dates and batch numbers, small barcode formulations

If you need the half-inch format, see the UniPlus Half-Inch 42ml TIJ 2.5 Solvent-Based Industrial Empty Ink Cartridge. If you need a pre-filled finished product, see the UP45 1-Inch 60ml Solvent-Based TIJ Industrial Ink Cartridge.



Compatibility Check

If your current equipment is half-inch, adopting a 1-inch empty cartridge requires confirming that the printhead mount, control board and clamping fixture will support it. We suggest providing your equipment model and current consumable details when you get in touch so we can help assess feasibility.





Storage and precautions:

  • Empty cartridges should be kept away from direct sunlight and dusty environments
  • When a filled cartridge is temporarily out of use, refit the protective clip to keep the printhead covered
  • If a filled cartridge is not going into immediate use, store it upright and run a test print periodically to prevent the printhead from clogging
  • Wear gloves and work in a well-ventilated area to avoid solvent ink contact with skin and eyes
  • Ink is not edible. Keep out of reach of children. In case of contact, rinse promptly with clean water and seek medical attention if you feel unwell





UniPlus 1-Inch Solvent-Based Industrial Empty Ink Cartridge — Frequently Asked Questions (FAQ)

  Should I choose the half-inch or the 1-inch empty cartridge? ＋
Start with the equipment, then look at the marking content. If your equipment only supports half-inch printheads, half-inch is the only option. If it does support 1-inch cartridges, decide by what you are printing: large characters, logos and outer-case coding call for 1-inch, while small-character dates and batch numbers are better served by half-inch.

  Can a formulation already used at half-inch be filled directly into a 1-inch empty cartridge? ＋
We still recommend confirming actual print performance after filling the 1-inch cartridge. Ink supply conditions and jetting load differ between cartridge sizes, so even with the same formulation, continuous-jetting stability may not match what you see at half-inch. Before running high-volume production, fill a small quantity for print testing and use those results to judge whether the formulation or the filling conditions need further adjustment.

  Which printing applications suit the 1-inch cartridge? ＋
The 1-inch cartridge suits applications needing a greater print height — multi-line text, large-format dates and batch codes, barcodes, QR codes, logos and other wide-format variable data printing.
Actual performance of an empty cartridge still depends on the filled formulation, print content, resolution, line speed, voltage and equipment conditions, all of which should be verified.

相关产品 / 勁宇科技股份有限公司

Uniplus TIJ 溶剂墨水
Uniplus TIJ 溶剂墨水

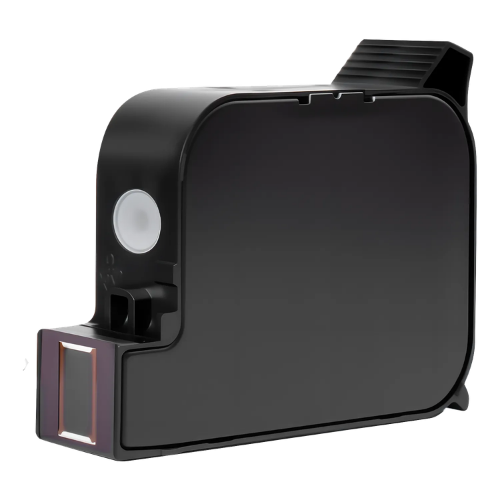

半寸空墨盒
半寸空墨盒

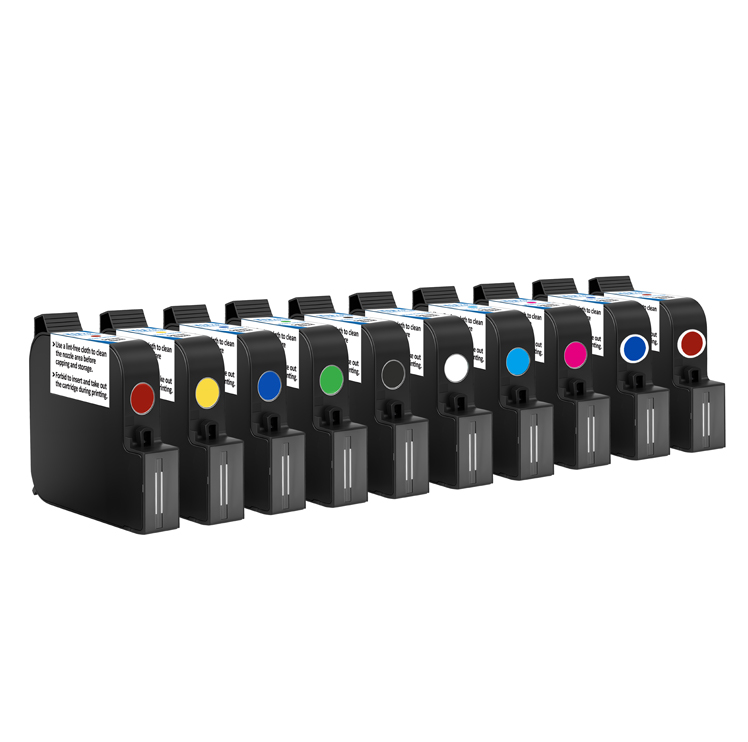

UP45 1-Inch 60ml Solvent-Based TIJ Industrial Ink Cartridge
UP45 1-Inch 60ml Solvent-Based TIJ Industrial Ink Cartridge

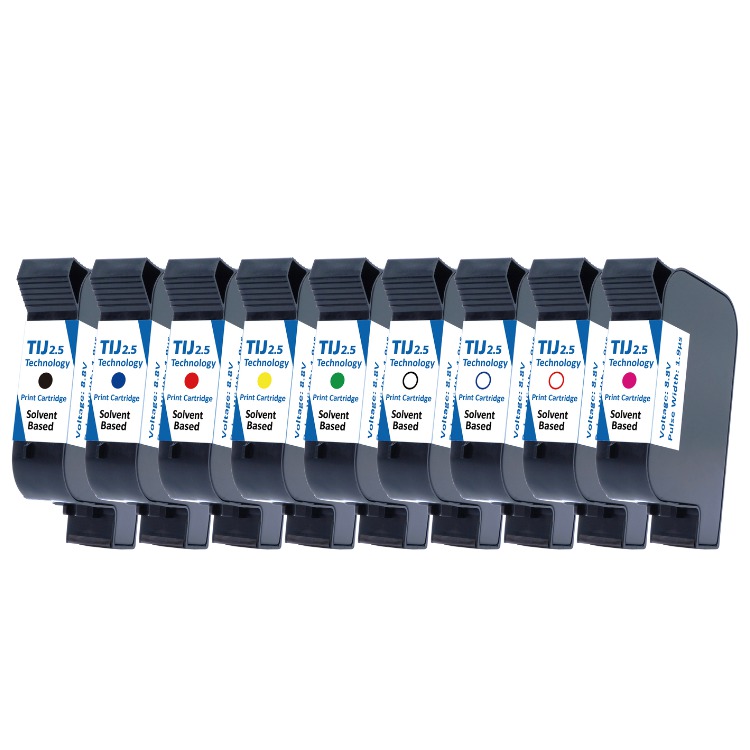

UP45 Half-Inch 42 ml Solvent-Based TIJ Industrial Ink Cartridge
UP45 Half-Inch 42 ml Solvent-Based TIJ Industrial Ink Cartridge
Black Half-Inch Solvent TIJ Cartridge
Black Half-Inch Solvent TIJ Cartridge
UP45 Half-Inch 42 ml Invisible Blue Solvent-Based TIJ Industrial Ink Cartridge
UP45 Half-Inch 42 ml Invisible Blue Solvent-Based TIJ Industrial Ink Cartridge

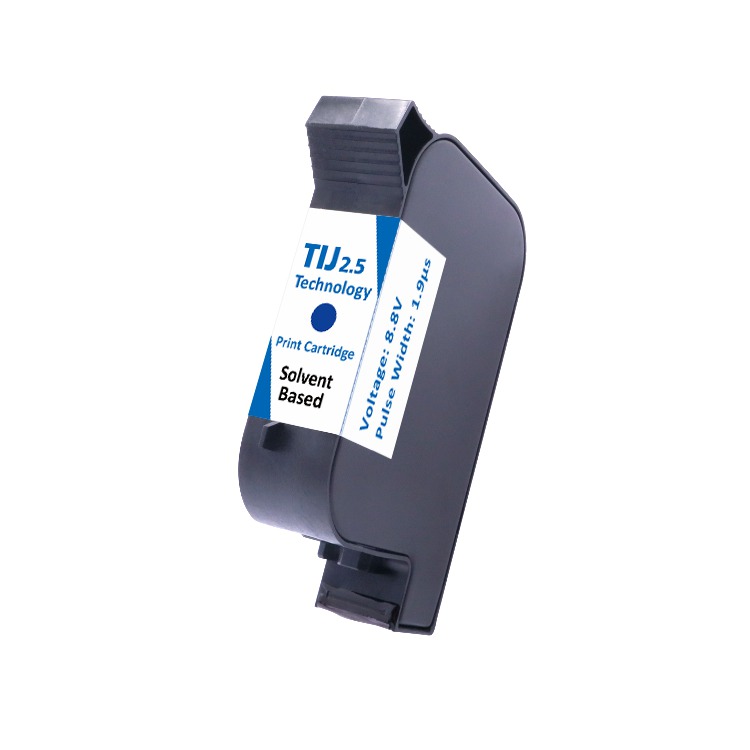

Blue Half-Inch Solvent TIJ Cartridge
