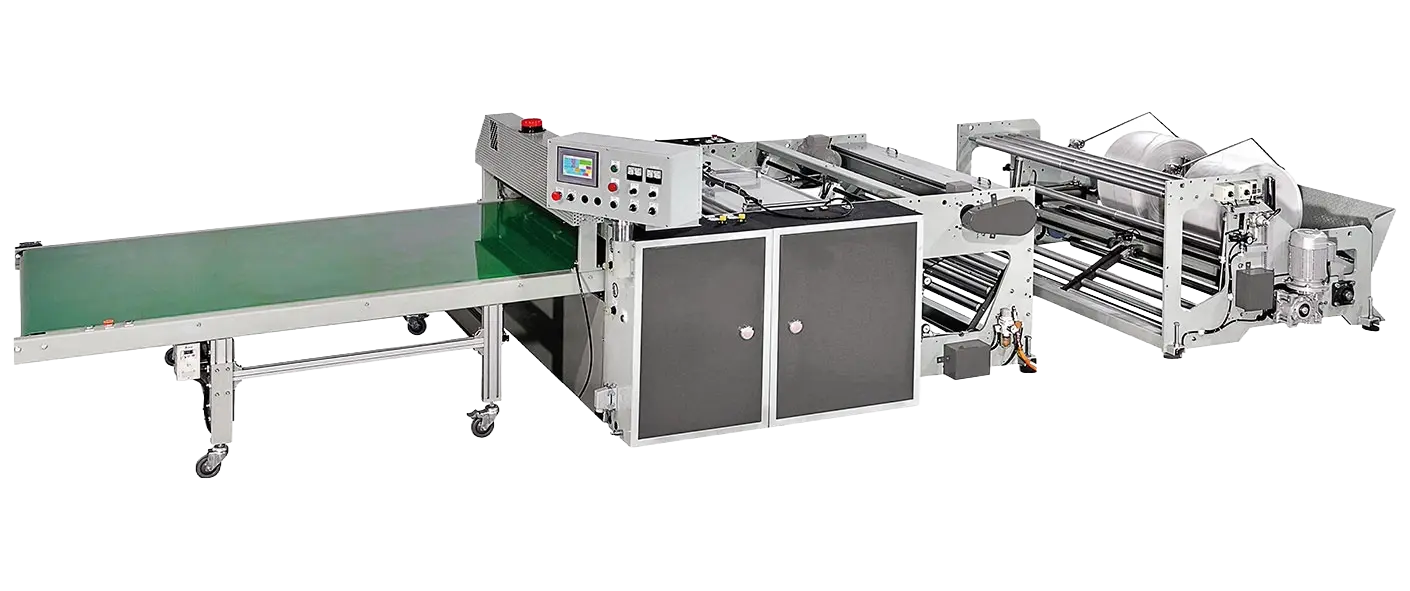

Name: Wire Impulse Bottom Bag Sealing Machine with Flying Knife Cutter
Brand: 铭机实业股份有限公司

Wire Impulse Bottom Bag Sealing Machine with Flying Knife Cutter

分类: 封切机

铭机实业股份有限公司

国家: 台湾

电话: 886-6-5783420

传真: 886-6-5783347

联络人: 张总经理

马上询问

The MGA-BSF-1000W/1400W is a wire impulse bottom bag sealing machine with flying knife cutter, designed for factories running high-thickness PE bottom-sealed bags. A European-brand temperature controller regulates the sealing wire band precisely, and a Japanese-made servo motor controls bag size.

A specially designed flying knife cutter delivers a clean cut and perfect stacking of finished bags on the conveyor. The machine is available in two widths to suit different production needs, both handling film up to 0.6 mm total thickness at a liner speed of 60 meter/min.

Model	MGA-BSF-1000W	MGA-BSF-1400W
Bag Width	100 - 1,000 mm	100 - 1,300 mm
Bag length	350 - 2,500 mm	350 - 2,500 mm
Total Thickness	Max. 0.6 mm
Output	Max. 80 cycle/min
Liner Speed (Depend On Size)	60 meter/min
N.W.	2,250 kg	2,500 kg
Machine Dimension	7,200(L) x 1,550(W) x 1,400(H) mm	7,200(L) x 2,300(W) x 1,400(H) mm
