High Speed Twin Lines Sheet Protector Making Machine With Auto Packing Line

分类: 文具夹制造机

铭机实业股份有限公司

国家: 台湾

电话: 886-6-5783420

传真: 886-6-5783347

联络人: 张总经理

马上询问

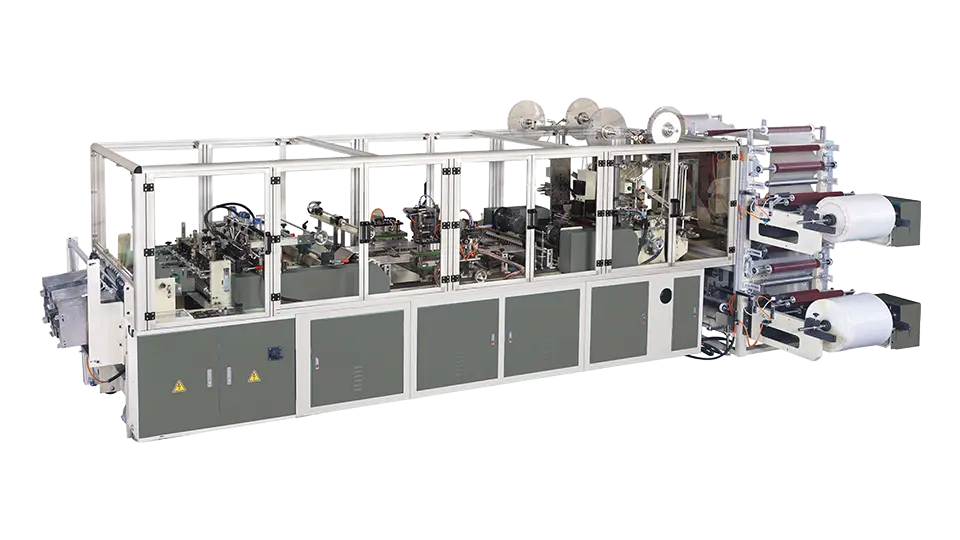

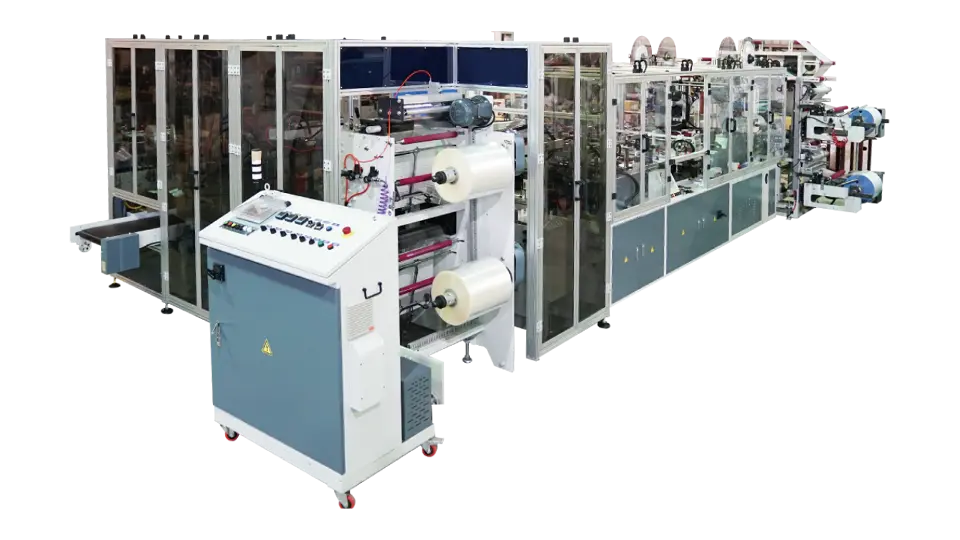

The MGA-17A-700DSPEX+17P-355A is a high-speed twin-line sheet protector machine with an integrated auto packing line, converting CPP and PP blown film into punched, heat-sealed A4 sleeves for ring binders and office filing. Four sets of servo motor controls run each line independently for stable dual-line production.

A fully automatic white strip connecting system saves time when reloading the white ribbon, and a precision punching mold design supports high-speed output. The stable heat sealing station keeps sealing quality consistent at the bottom of each sheet protector, while the auto packing system reduces labor costs on the finishing end.

Model	MGA-17A-700DSPEX+17P-355A
General Machine Specifications
Machine Dimension	9000 (L) X 4713 (W) X 2295 (H) Mm
Machine Weight	7135 Kg
Required Power	20 Kw
Machine Performance
Feeding Materials	Cpp & Pp Blown Film
Thickness (By Gauge Measurement)	0.028 - 0.1 Mm
Effective Size	A4
Output (With Packing System) A. 50 - 100 Pcs/Bag B. 20 - 25 Pcs/Bag	360 - 400 Pcs/Min 160 - 200 Pcs/Min
