封闭式制袋机GF-32SE / SV

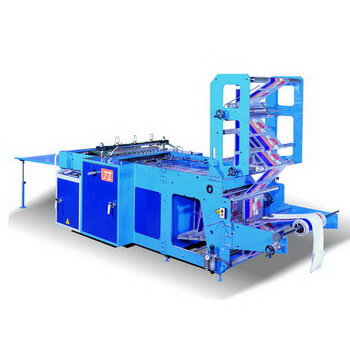

The GF-32SE/SV is a servo-driven side sealing bag making machine, the machine type used for clear packaging bags, garment bags and similar side-sealed formats. Within the series — GF-24SE/SV, GF-32SE/SV, GF-40SE/SV and GF-50SE/SV, with matching GF-S600/SV to GF-S1200/SV models — the GF-32SE/SV has a cutting width of 800 mm and a cutting length of 800 mm, on film from 0.01 - 0.1 mm. Production is Max. 200 Cycles/Min for the SE model and Max. 150 Cycles/Min for the S model.

The rear feeder is supplied with gusset, fold, slitter and adhesive tape applicator functions, the control panel uses an HMI, and the servo drive is YASKAWA/JAPAN with a SICK/GERMANY printing scanner. A conveying belt and collecting table are included. Options extend the machine to tension control, EPC, a triangle folding device, punch hole and Mexican hat punch devices, ultrasonic sealing, a perforating sealing knife, an envelope punching mold and an automatic stacking table.
