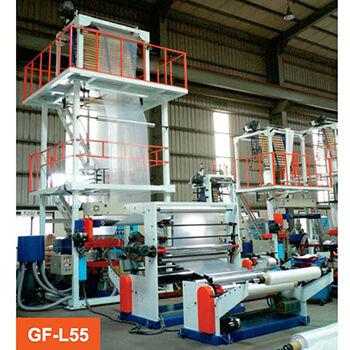

The GF-L55 is a single-layer blown film line for LD and LLDPE (low density and linear low density polyethylene). It sits in the middle of the GF-L series, which runs from the GF-L35 up to the GF-L65, and is configured for producing polyethylene film for bags and packaging at a maximum film width of 1000 mm. The extruder uses a 55 mm screw driven by a 40 HP motor with inverter control, feeding a 200 mm die fitted with a dual-lip air ring.
Rated output is 90 KG/HR. The line is controlled from an independent switch board, and film is taken up on a 1100 mm roller width and wound on a single-station manual surface winder. Options include an auto loader, manual screen changer, pressure gauge, die rotating unit, corona treater, HDPE dies and air ring, flying knife, second-station winder, air shaft and air chiller, so the same base machine can be specified for HDPE or for downstream printing.
|
MODEL |
GF-L35 |
GF-L45 |
GF-L50 |
GF-L55 |
GF-L65 |
|
MATERIAL TO BE USED |
LD/LLDPE (Low Density & Linear Low Density Polyethylene) |
||||
|
MAX. FILM WIDTH |
400 mm |
600 mm |
800 mm |
1000 mm |
S type:1200mm
E type:1500mm
|
|
EXTRUDER SIZE |
35 mm |
45 mm |
50 mm |
55 mm |
65 mm |
|
MOTOR+INVERTER |
10 HP |
20 HP |
30 HP |
40 HP |
60 HP |
|
DIES |
80 mm |
120 mm |
150 mm |
200 mm |
S type:250mm
E type:300mm
|
|
MAX.CAPACITY |
25 KG/HR |
40 KG/HR |
60 KG/HR |
90 KG/HR |
140 KG/HR |
|
CONTROL PANEL |
INDEPENDENT TYPE SWITCH BOARD |
||||
|
AIR RING |
1 SET, DUALLIP AIR RING |
||||
|
ROLLER WIDTH |
500 mm |
700 mm |
900 mm |
1100 mm |
S type:1300mm
E type:1600mm
|
|
SURFACE WINDER |
ONE STATION, MANUAL TYPE |
||||
|
OPTIONS |
Auto Loader, Manual Screen Changer,
Pressure Gauge, Die Rotating Unit, Corna,
HDPE Dies/Air ring, Flying Knife, 2nd Station Winder, Air Shaft, Air Chiller
|
||||
|
* Details are available with quotation, specifications could be changed upon request. |
|||||
