Fully Automatic High Speed T-Shirt Bag & Bottom Sealing with core Bags-On-Roll Making Machine with Hot Slitting and Side Gusseting Devicet

分类: 封切机

铭机实业股份有限公司

国家: 台湾

电话: 886-6-5783420

传真: 886-6-5783347

联络人: 张总经理

马上询问

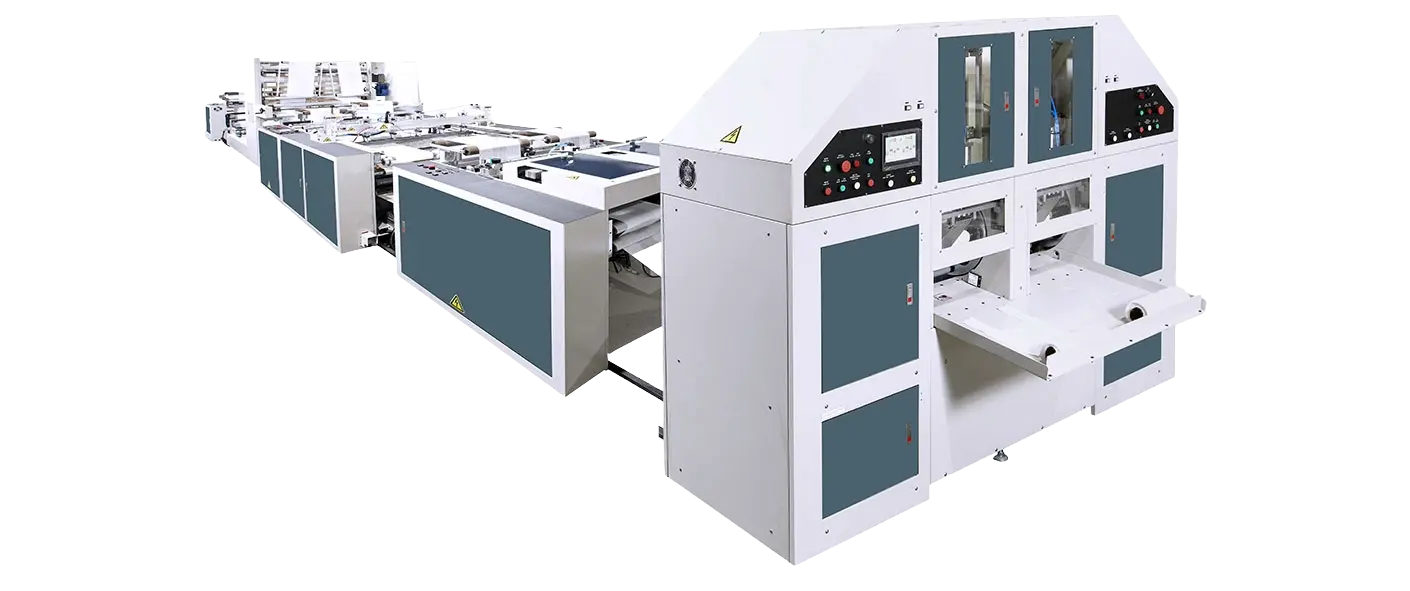

The TOSBR-40-G2+OS-C is Ming Jilee's fully automatic high speed T-shirt bag and bottom sealing bags-on-roll (with core) making machine, built with hot slitting and a side gusseting device to produce rolled T-shirt bags in one automated line.

It runs a bag length of 350 mm and bag width of 180 - 330 mm, processing film at 0.006 - 0.035 mm thickness at a max speed of 200 pcs/min/line, warmed by a 4 kw heater on a 220V, 3Phases, 30KVA power supply. The line winds a jumbo roll of W1200 x Ø900 mm down to a finished roll of W330 x Ø150 mm.

Model

TOSBR-40-G2+OS-C

Power	220V, 3Phases, 30KVA	Production Speed	Max Speed 200 pcs/min/line
Heater	4 kw	Dimensions (Jumbo Roll)	W1200 x Ø900 mm
Bag Lenght	350 mm	Dimensions (Finished Roll)	W330 x Ø150 mm
Bag Width	180 - 330 mm	Dimensions (Machine)	L12150 x W2400 x H2120mm
Flim Thinkness	0.006 - 0.035 mm
