Name: Flower Bag Making Machine with In-Line Heat Dotting Device
Brand: 铭机实业股份有限公司

Flower Bag Making Machine with In-Line Heat Dotting Device

分类: 封切机

铭机实业股份有限公司

国家: 台湾

电话: 886-6-5783420

传真: 886-6-5783347

联络人: 张总经理

马上询问

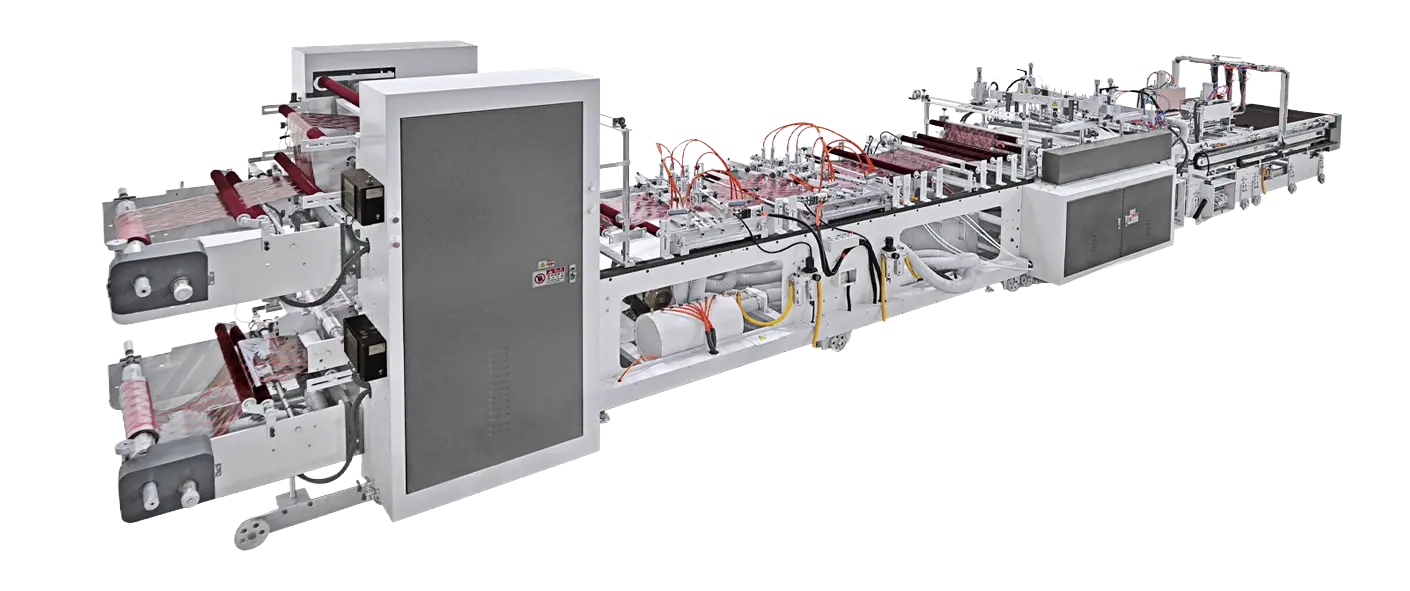

The MGA-22A-800D is a flower bag making machine with an in-line heat dotting device, producing tapered flower bags and sleeves for bouquet and single-stem flower packaging. A Japan-made servo motor provides precise size control, and two dancing roll stations maintain film tension during production.

The heat sealing bar station uses a Ming Jilee-designed linear bearing slider that allows easy size adjustment. A pin stacking station and auto conveyor system let operators collect finished flower bags or sleeves directly for the next packaging step. An optional USA-made punching station is available for creating holes in the bags or sleeves.

Model	MGA-22A-800D
General Machine Specifications
Machine Dimension	10,920 (L) x 1,710 (W) x 1,910 (H) mm
Machine Weight	4,900 kg
Required Power	7 kw
Machine Performance
Feed Material	CPP, BOPP
Single Layer Film Thickness	0.028 - 0.08 mm
Output	60 - 110 bags/min
