Banana Bag Making Machine

分类: 封切机

铭机实业股份有限公司

国家: 台湾

电话: 886-6-5783420

传真: 886-6-5783347

联络人: 张总经理

马上询问

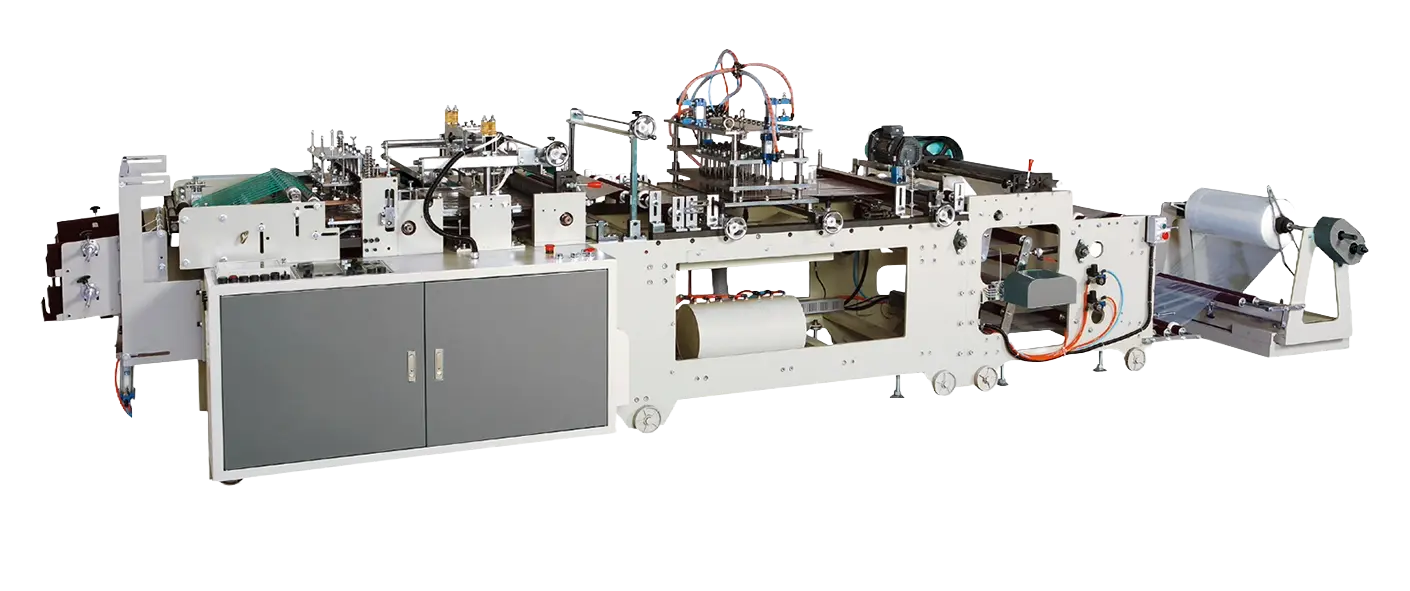

The MGA-17B-700SP banana bag making machine converts P.P./P.E. blown film into finished bags in a fully automated production line, reducing labor cost and increasing output. Synchronized cutting and sealing keep bag size uniform, produce a neat, clean seal, and reduce waste.

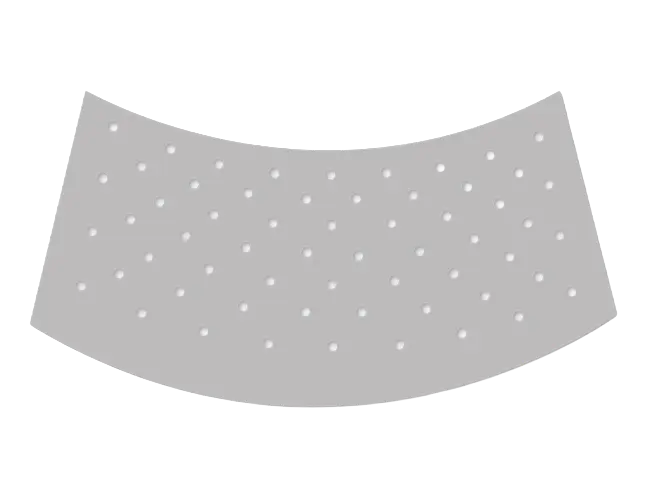

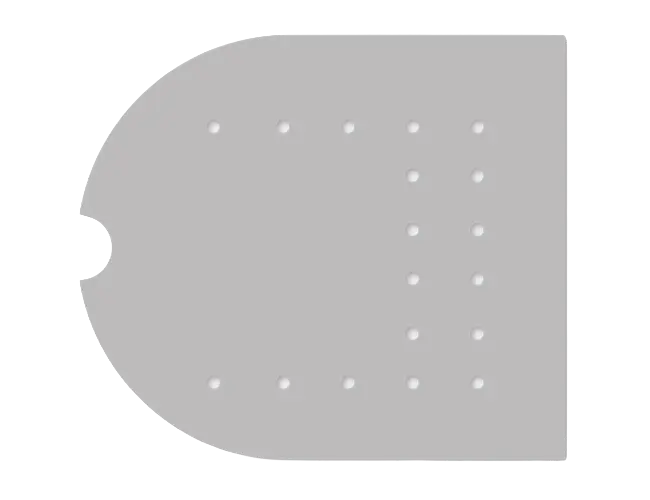

A choice of precision, durable punching molds with a low breakdown rate works with punching-sensor movement to hold precise, stable punching position. Parts support the machine's control and monitoring systems, and the sealing equipment's design accommodates different bag specifications and types for a wide range of applications. Optional equipment includes an electronic EPC, a 3" unwinding air shaft, punching molds for 20-38 or 85-120 holes, and setups for arc-shaped or non-woven banana bag production.

Model	MGA-17B-700SP
Feed material	P.P. / P.E. blown film
Effective cutting width	250 - 600 mm
Effective cutting (feeding) length	150 - 550 mm
Single layer film thickness	0.03 - 0.12 mm
Output	40 -120 pcs/min
Machine dimension	7,000 (L) × 1,700 (W) × 1,900 (H) mm
Machine weight	3,200 kg
Required power	3.7 kw
Optional equipment	(1) Electronic E.P.C : 1 (2) 3'' unwinding air shaft : 1 (3) The complete part heat sealing mold : 1 (4) ψ6mm precision punching mold (holes quantity: 20 - 38 holes) : 1 (5) ψ6mm precision punching mold (holes quantity: 85 - 120 holes) : 1 (6) Arc-shaped banana bag production : 1 (7) Non-woven banana bag production : 1
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
