Name: 印刷定位平面口罩制造机
Brand: 铭机实业股份有限公司

分类: 口罩机

铭机实业股份有限公司

国家: 台湾

电话: 886-6-5783420

传真: 886-6-5783347

联络人: 张总经理

马上询问

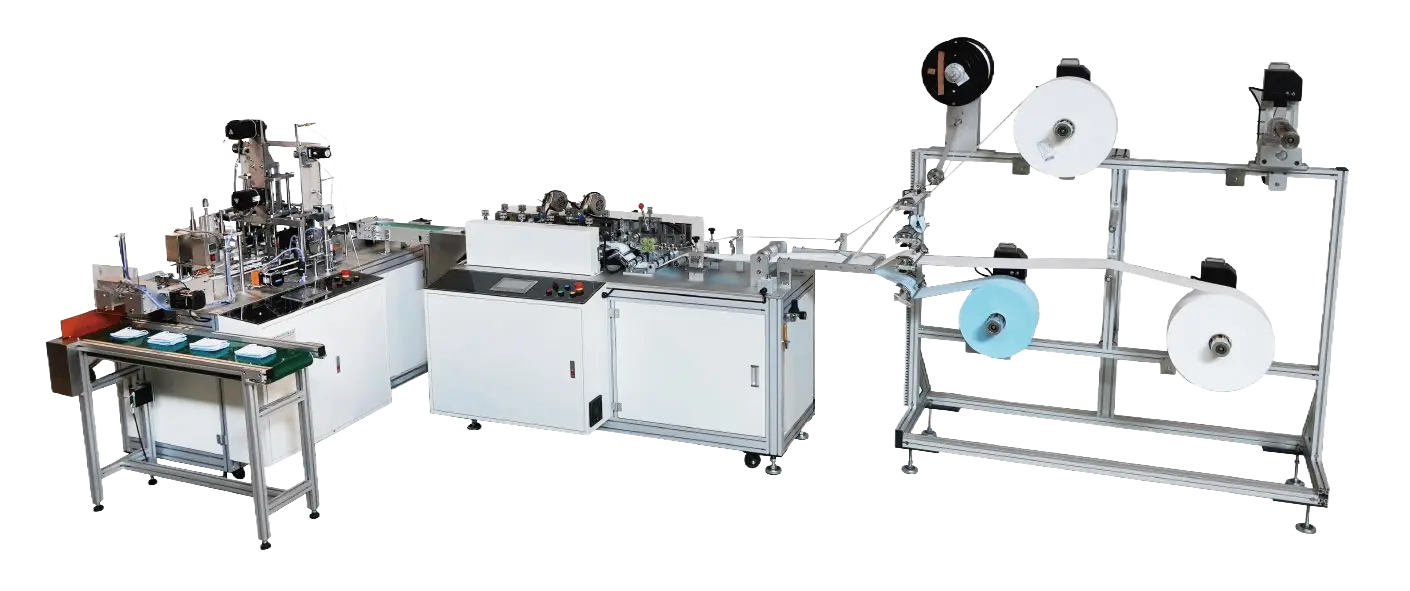

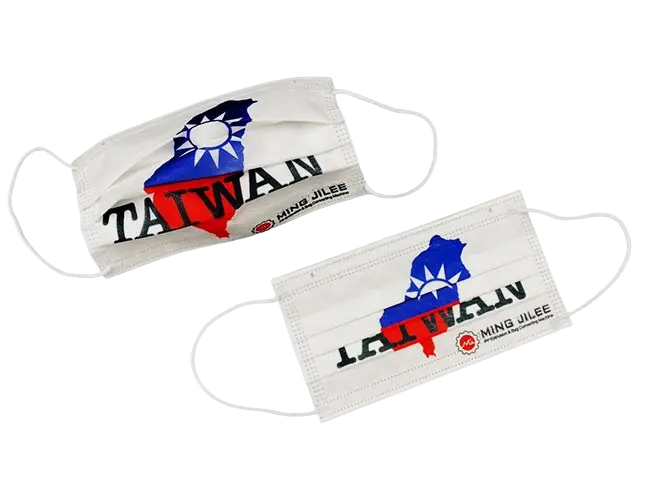

The MSK-400-S8-PF is a 3-ply medical mask machine with an in-line print registering system, converting non-woven and melt-blown fabric rolls into finished 3-ply flat-fold masks through nose wire insertion, ultrasonic welding, ear loop attachment, and cutting in one continuous operation. It supports registered printing cuts for precise designs and draws material from four unwinding stations feeding non-woven and melt-blown materials.

A nose bridge flattening device supports mask quality, and the ultrasonic welding device is Taiwan-made. Servo-controlled ear-loop cutting keeps pace with production speed, and an automatic conveyor moves counted, stacked masks smoothly to packaging.

型式	MSK-400-S8-PF
机械规格
占地面积	5,950 (L) × 2,750 (W) × 1,880 (H) mm
净重	820 kg
全台备电	8 kw
机械性能
口罩设计	175 x 95 mm and 145 x 95 mm By PLC controller, no need additional roll and cutter
产量	70 - 100 pcs/min
