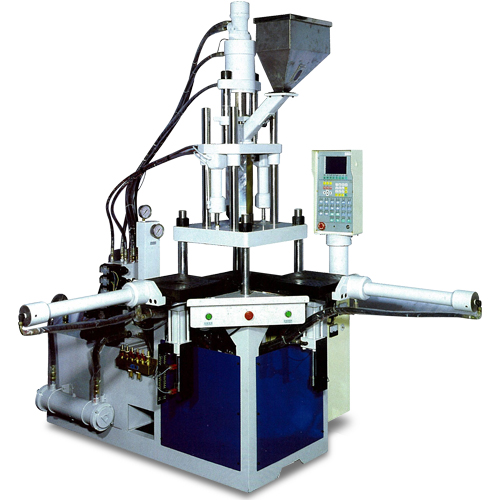

Name: Vertical Type Plastic Injection Molding Machine TA-2.5L-SS~6.0L-SS
Brand: 大爱机械有限公司

Vertical Type Plastic Injection Molding Machine TA-2.5L-SS~6.0L-SS

分类: Vertical Injection Molding Machine

大爱机械有限公司

国家: 台湾

电话: 886-2-2985-3438

传真: 886-2-2980-2475

联络人:

马上询问

TA-2.5L-SS~6.0L-SS

Vertical Type Plastic Injection Molding Machine

Detail Specifications / Descriptions

Two Slides Computer NC Type.

Vertical type, slim design,easy for operation and maintaining.

Different models: Fixed bottom, Single & Double slide rotary table, L Shape double slide(patent),Rotary table,Two colors injection rotary table for meeting your requirement.

Different control systems: Relay control, new 201 type PC program control system, pressure proportional, pressure & flow proportional, LCD monitor control, Safety device for operator.

Adopting straight pressing model with high low speed, low pressure open.

Mold close protecting the mold include multi temperature control and accurate injection,stable production, easy adjustment.

Established in 1985, we could follow your special asking to meet all your requirements.

Taiwan Patent 212678

China ZL032040105

Injection System	Machine Type	Unit	TA-2.5ST-SS TA-2.5L-SS		TA-3.0ST-SS TA-3.0L-SS		TA-4.0ST-SS TA-4.0L-SS		TA-5.0ST-SS TA-5.0L-SS		TA-6.0ST-SS TA-6.0L-SS		TA-8.0ST-SS TA-8.0L-SS
	Screw Diameter	mm	30	32	32	34	36	40	40	45	40	48	48	55
	Injection pressure	cm 2	1580	1430	1902	2012	2160	1650	1880	1520	1980	1720	1680	2030
	Max. shot Weight (Ps)	g	78	90	100	110	120	130	130	160	130	180	180	250
	Injection Rate	cm/sec	46	52	56	60	66	74	78	82	82	72	70	72
	Screw Stroke	mm	125		135		135		140		140		150
	Screw Speed	RPM	10-200		10-250		315		10-350		10-400		10-400
	Number of Temperture Control		3 (+1)		3 (+1)		3 (+1)		4 (+1)		4 (+1)		4 (+1)
	Material Hopper Capacity	L	12		15		15		15		15		15
Clamping System	Clamping Force	Tons	30		40		55		70		90		110
	Opening Force	Tons	10		20		25		25		25		35
	Platen Size	mm	550/390		580/490		650/510		680/510		720/520		830/580
	Distance Between Tie Bar	mm	370		405		470		490		530		570
	Min. Mold Height	mm	150/70		200/75		200/150		250/200		250/200		250/300
	Opening Stroke	mm	180		200		200		220		220		250
	Max. Open Daylight	mm	330/245		400/275		400/350		470/420		470/420		500/550
	Ejector Force	kg	1800		2000		2500		2500		2500		2500
	Ejector Stroke	mm	35		35		35/120(S)		35/120(S)		35/120(S)		35/120(S)
Hydraulic & Electricsystem	Max. Hydraulic Pressure	kg/cm 2	140		140		140		160		160		160
	Pump Output	L/min	30		39		39(47)		47(53)		53(65)		90
	Oil Tank Capacity	L	100		120		140		150		160		200
	Cooling Water Consumption	L	600		800		900		1200		1200		1200
	Pump Motor Power	hp	5		7.5		10		15		15/20		25/30
	Barrel Heating Power	kw	2.8		3.0		3.5		4.5		4.5		5.5
	Total Wattage	kw	7		9		12		19		23		28
Others	Machine Weight	kg	1600		2000		2200		2600		2700		3100
	Machine Dimensions	cm	130x205x230		150x220x235		175x240x245		185x235x260		185x235x260		200x245x270
	Shipping Weight	kg	1800		2200		2500		2900		3000		3500
	Shipping Dimensions	cm	205x175x230		230x200x235		245x240x245		320x260x260		320x260x260		330x280x270
