有轴式干式贴合机

分类: 软包装整厂设备

三夏精机股份有限公司

国家: 台湾

电话: 886-4-23587272

传真: 886-4-23580882

联络人: 陈小姐

马上询问

此貼合機適用於溶劑型、水性膠之貼合製程，專為高效能與高品質之需求設計。精準的張力控制，成熟的貼合技術，可生產蒸煮袋、滅菌袋、醫用包裝等高端產品。塗膠輪與塗膠壓輪分別獨立馬達控制，可提高塗佈量的精準度與均勻度。高效能烘箱可確保溶劑完全揮發，使產品符合安全使用規範。此貼合機因應多種加熱方式，並提供節能系統之選配，幫助減少碳排放及降低生產成本。

Ideal for laminating films used in food packaging, including snack pouches, beverage sachets, and retortable pouches.
Suitable for sterilizable packaging materials used for ready-to-eat meals or high-temperature food storage.
Used to produce medical pouches for sterilized instruments and pharmaceutical products, meeting strict hygiene and quality standards.
Ideal for laminating biodegradable or recyclable materials, supporting eco-friendly packaging solutions.

Reliable tension control: Ensures smooth lamination processes, reducing defects and enhancing product quality.

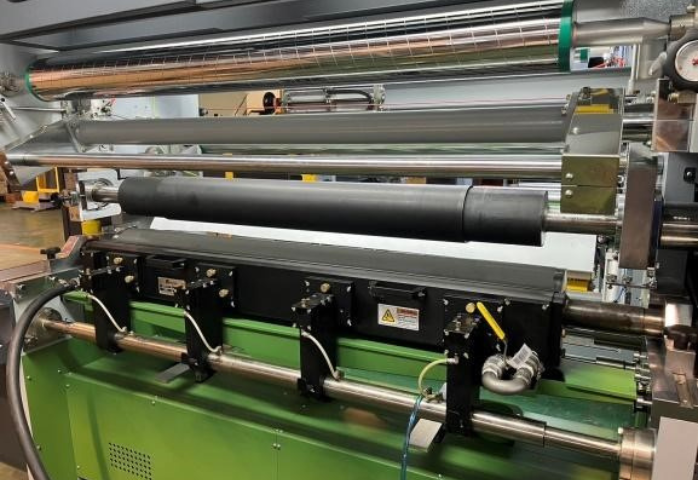

Precise coating application: The gravure coating station ensures consistent and highly accurate coating weight, reducing material waste and ensuring uniform quality

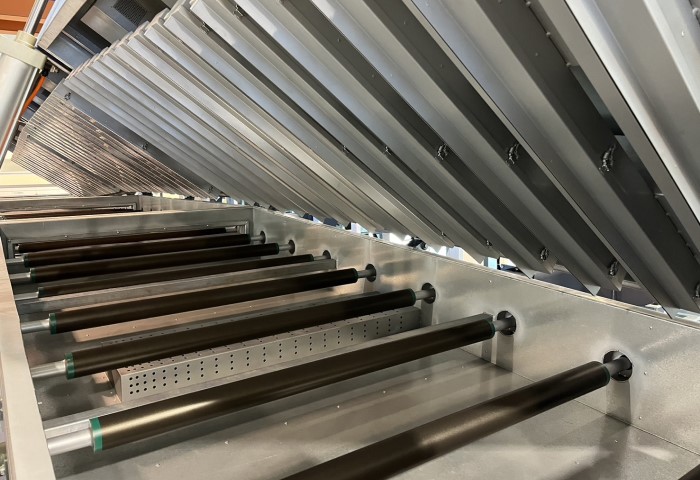

Efficient drying system: The advanced drying tunnel completely vaporizes solvents, ensuring product safety and avoiding defects caused by residual solvents
Customizable Heating Solutions: Offers various heating options to suit specific production needs, enhancing operational adaptability.
Energy efficiency options: The optional energy-saving system helps lower carbon footprint and operational costs, aligning with sustainability goals.

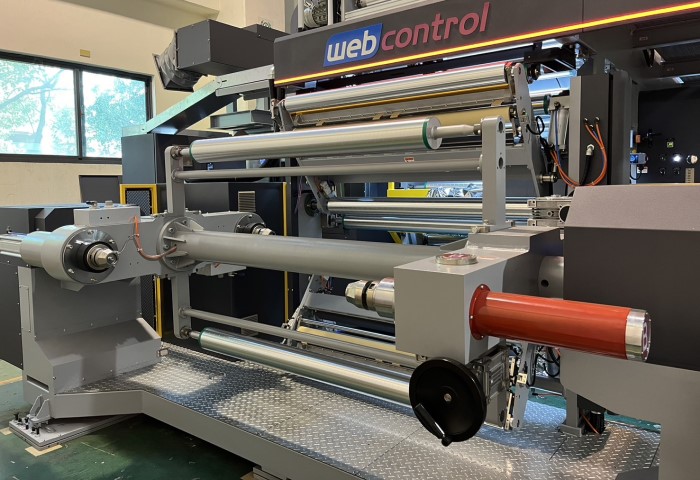

Enhanced productivity: Turret wind design and its reliable performance minimize downtime to fulfill continuous production. It is ideal for high volume production, supporting industries with large-scale demands and improving overall production efficiency.

型号	DL-1000	DL-1300
机器速度	200 M/min
运转速度	180 M/min
贴台材料	适用于各种材料
烘箱	电热 (瓦斯或蒸气或热煤油为选购)
烘箱长度	2.7M x3 零件 (8.1M)
烘箱导轮	Ø90 mm, 表面镀铬. 时规皮带驱动
涂胶系统	凹版印刷, 独立马达
胶水桶	不锈钢双层型（外层可以吸收溶剂的气味）
贴合轮	镜面效果处理, 热油循环
烘箱张力范围	2-15Kg
第一材料张力范围	4-25Kg
第二材料张力范围	3-25Kg
成品张力范围	4-25Kg
最大放料直径	600-800mm
最大收料直径	800-920mm
放料材料固定方法	气压轴
收料材料固定方法	气压轴
预热轮	选购配备
导轮	Ø120mm., 中心轴型，镀硬铬涂层
梯子	固定式
最大材质宽度	1100mm	1350mm
涂胶轮宽度	1200mm	1400mm
涂胶宽度范围	400-1050mm	400-1300mm
烘箱风车	5HP x 3 sets	5HP x 3sets
排风机作为选购配备	15HP	15HP
记忆数据	选购配备	选购配备
自动切料装置	●	●
收料上切刀	●	●
放料下切刀	选购配备	选购配备
放料上切刀 1	●	●
放料下切刀1	选购配备	选购配备
放料上切刀 2	选购配备	选购配备
放料下切刀2	●	●
放料座边缘控制系统 1	●	●
放料座边缘控制系统 2	●	●
烘箱出口对边装置	●	●
可调式导轮	●	●
舞轮张力控制	●	●
封闭式刮刀	选购配备	选购配备
套筒式涂胶压轮	选购配备	选购配备
贴合轮	选购配备	选购配备
预热轮	选购配备	选购配备
表面处理机	选购配备	选购配备
