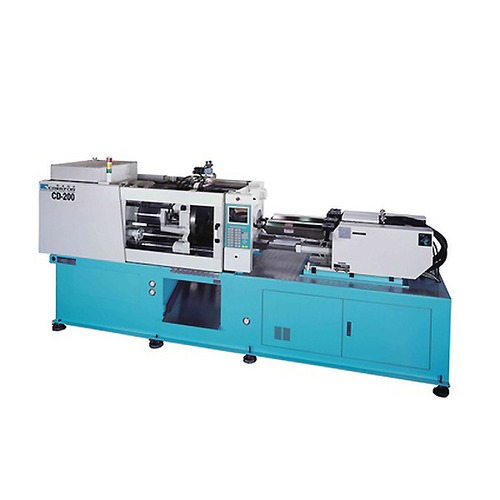

CD-200 Two Color Injection Molding Machine

Features:

1. Two independent injection unit can reduce the cycle time.
2. Hydraulic clamping unit, the mould deformation is very less and the injection moulding is more accuracy.
3. Linear transducer for the injection, clamping position control.
4. Screw and barrel made by ACM2 material process with nitride for high ware resist.
5. Four heating zone controller by PID the accuracy can reach to ±1℃
6. Two independent ejector designs for easy operation.
7. Advance turntable mechanism design for fast moving and precision positioning.
8. Heavy duty turntable (CD-200 nay reach too 1000kg) to ensure the mold do not falling during operation. High precision and speed turntable, the speed can reach to 2 second/180
9. Advance Japan made star controller with 10*color LCD screen for easy operation.

Controller

• Programmable "STAR" controller, made in Japan.
• High resalution display screen with various function display.
• SPC parameter is easy to set up & modify.
• Monitor operation procedure.
• Instart display operation & operation time.
• Open, close mode & ejection.
• Production management.
• 4 steps temperature setup, expand to 6 steps.
• Oil temperature display in 1 section.
• Oil prehcat function.
• Thermo control curve.
• 100 SPC recard.
• SPC precision comparison.
• Internal storage of 60 machine setup.
• Display temperature predision scale.
• Pressure curve*, Speedcurve*.
• IC memory card to expandstorage of machines setup*.

Programmable computer unit:

High efficiency and easy-to-use display

10" color screen (option)

• The computer controller, made in Japan with LCD display, is easy to use, operate, andset.
• It is quick and simple to call up the program to the LCD display for modification.

Injection/charge setting apge	Injection/charge setting apge
Machine status page	Temperature setting page

We can offer, you the customer, a wide range of accessories to complement your injection machine.
These accessories are available locally and are manufactured to the highest quality.
Please see below for what we can supply.

(Please Note: These accessories are not sold separately, only with a Creator Machine)
