分类: Multihead Weigher
国家: Taiwan
电话: 04-22515064
传真: +886 (4) 22515064
联络人: Nicole Yang
马上询问

Delivering high-performance weighing, achieving up to 300 weighings per minute.

Our multihead weigher features mixing function, allowing for the blending of different product flavors by weight or by piece while maintaining precision in average weight. The flexibility of both software and hardware enables precise adjustments for each product, including feed control, contact parts, and machine settings. Operators can easily create new mixing recipes to meet various product requirements. Additionally, our three-layer hopper design not only enhances weighing accuracy but also reduces costs. These advantages make our multihead weigher the ideal choice for handling mixed products, bringing greater flexibility and efficiency to your production line.

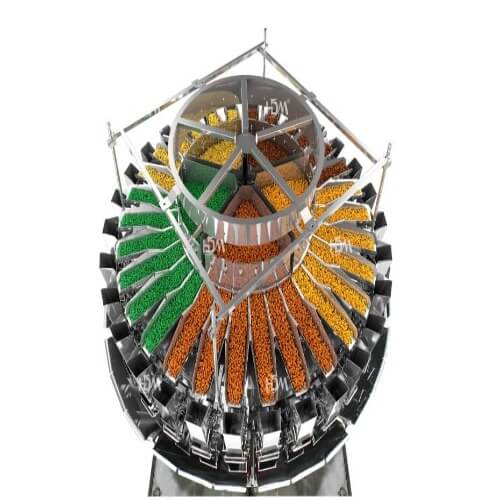

  • Three layers of hoppers: feed hopper, weigh hopper and memory hopper.
  • Achieve more combinations, higher accuracy and higher speed.
  • Maximum speed up to 200 weighs/min with one continuous vertical packing machine, twin bagger or multilane packing machine.
  • Multiple discharge can work with twin or multilane packing machine.
  • Blending two to five different products, the compensation function achieves the best total weight.

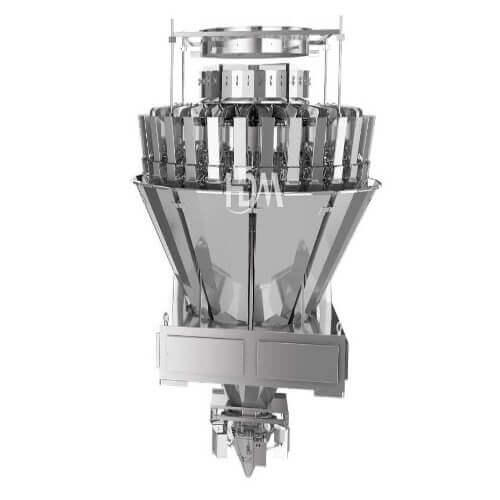

ltem High speed 30-head weigher with memory hopper
Model AC-6B10-4A-19F
Generation 4.0G Plus
Weighing Range 15-500g
Max.speed 300WPM or 5x60WPM
Power Supply 220V,50/60HZ,4.5kW
Hopper Volume 0.8L
Monitor 10.4 inches color touch screen
Dimension(mm) 2402X2257X2943
