夹链袋制袋机系列

分类: 袋样类别

应用领域: 各式包装袋农业用品夹链袋三角葡萄拉头袋三明治袋

第赞企业有限公司

国家: 台湾

电话: 886-5-2217005

传真: 886-5-2211929

联络人: 邱总经理

电子型录马上询问

Machine Features:

High speed zipper film extrusion - Stable LDPE extrusion at 8-12 M/min
Zipper film die head - One die, one size. available sizes listed in specification chart
Auto width adjustment - Self-correction for extrusion width upon detection out of range
Closure examination - Alarm when zipper not closed properly

Optional Device

Color-line sub-extruder - Extra 20 mm for secondary color
Color zipper sub-extruder - Extra 25 mm for color zipper
Sound zipper device - Popping sound and hand notify users of secure closure

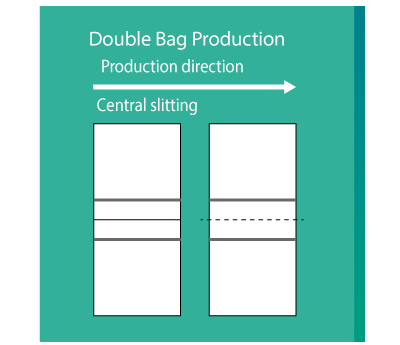

Double bag die head - Output twin zipper lines with single die head and slitted during converting

异形斜线封口-
• 斜封口装置密封有边折的胶膜，以形成平袋的矩形底部。主要用于重型包装。

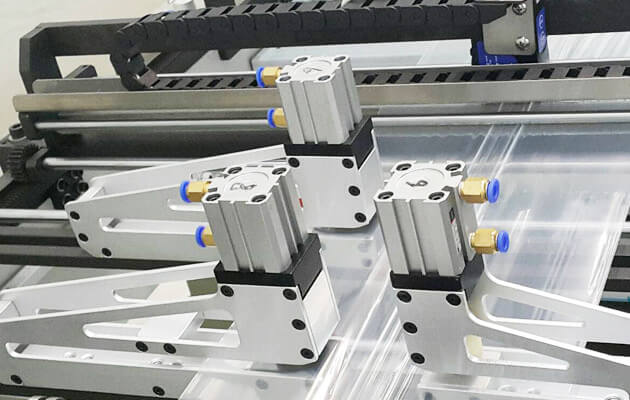

辅助封口-
• 在袋子的特定位置进行热压和封口，例如在4层和2层位置之间的折角间隙，以达到稳定可靠的封口。

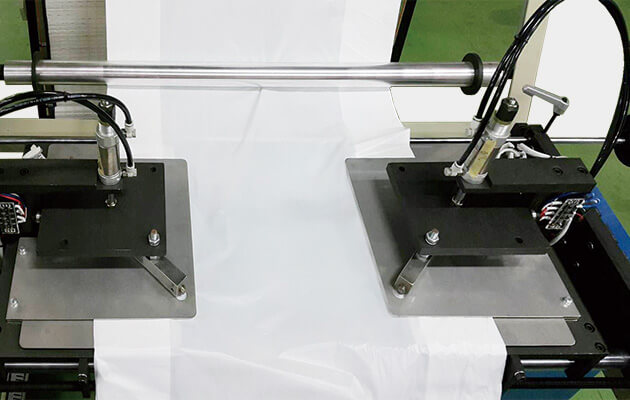

辅助间歇式超音波封口-
•将夹链碾压及封口在夹链胶膜和夹链条上，以达到不漏水和良好的边封表现。

各式冲孔-提把/圆形/切口/蝴蝶孔/其他-
•各式冲孔有标准尺寸及客订尺寸可选择。固定于机台侧边。

中分条装置-
• 在送料中以固定分条刀剖开胶膜。

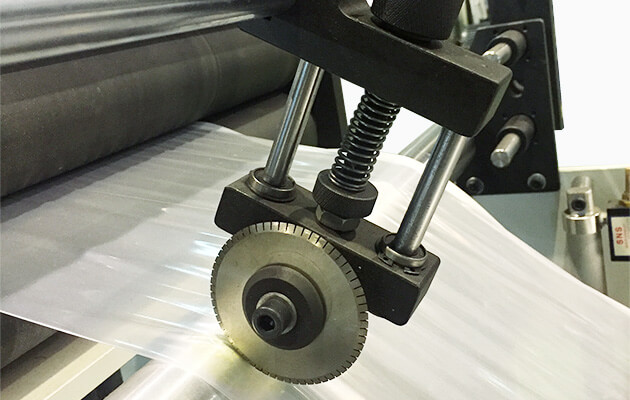

连续式点断装置-
•连续锯齿刀是固定的，切出与进料方向平行的点断线。

锯齿式冲孔-
•针对厚膜冲孔的锯齿冲孔。

Machine Features:

High-speed extrusion @30-80M depending on style
Extrusion for both PP & PE based profiles
Special formulated coating layer attachable to both PP & PE film minimizing stock requirement. Low seal temperature material can increase production efficiency.
Closure malfunction alarm - Alarm when zipper profile closure not performed properly.
(Zipper profile mould available by standard and customized)

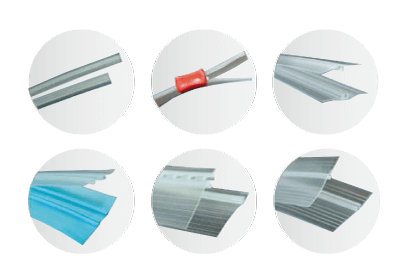

Available zipper styles:

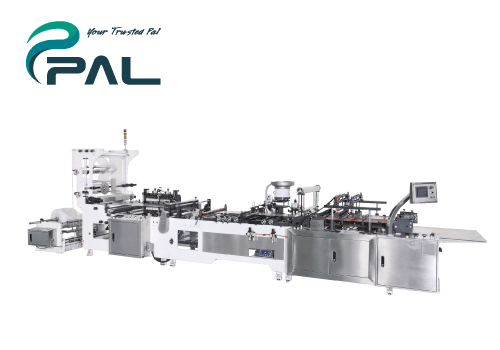

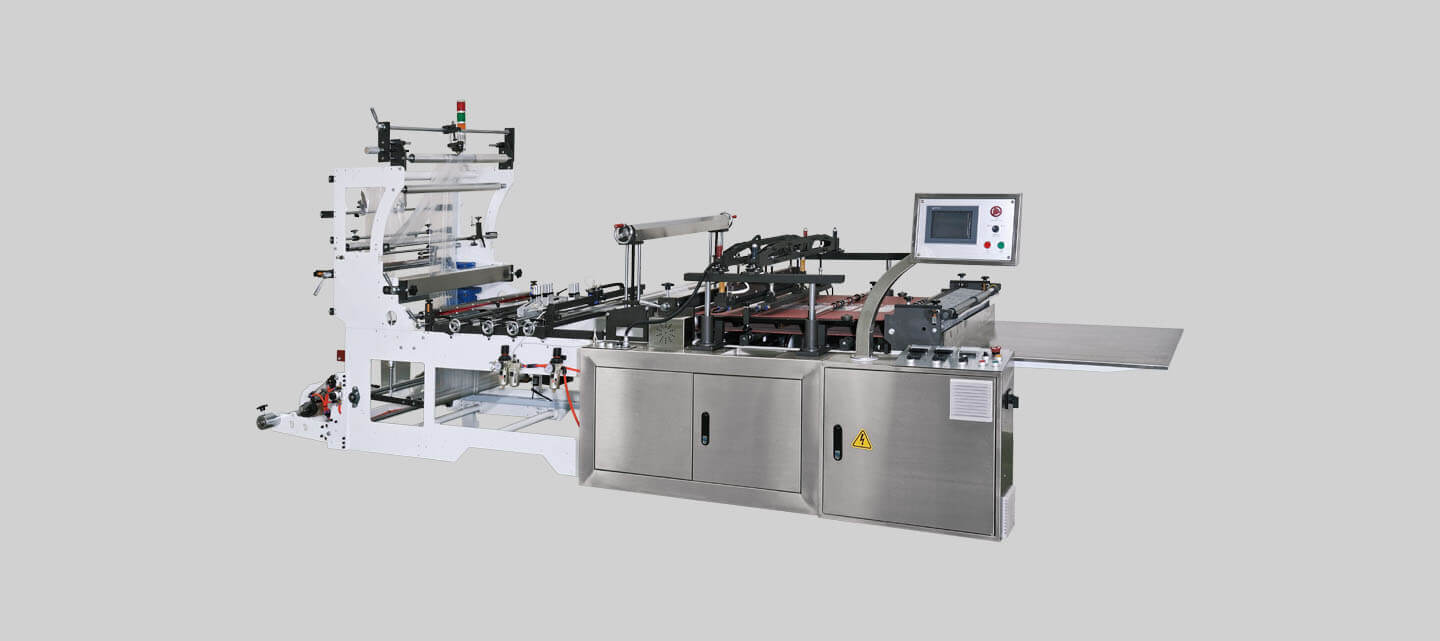

Machine Features:

Servo driven - High speed and accuracy @140 pcs/min
Zipper attachment unit - Stable attachment feeding and sealing continuously with strong sealing performance
Also available with twin line deli system
Auto-stop for profile jamming - Lever mechanism and machine automatically stop when zipper profile is jammed
Malfunction alarm / stop - Abnormal temperature / no material feed / photocell track miss

Available Optional Device:

Auxiliary ultrasonic sealing - Crushing zipper for easy sealing
(Various hole punches - Kidney, euro, round punches, etc.)
Trangle folding device - Folding sheet film in half for bag making
Irregular sealing bar - Cut & sealing specific shape such as a grape bag bottom
Auto-slider insertion @60-100 pcs/min depending on slider style (model: ZPB-V+SD)

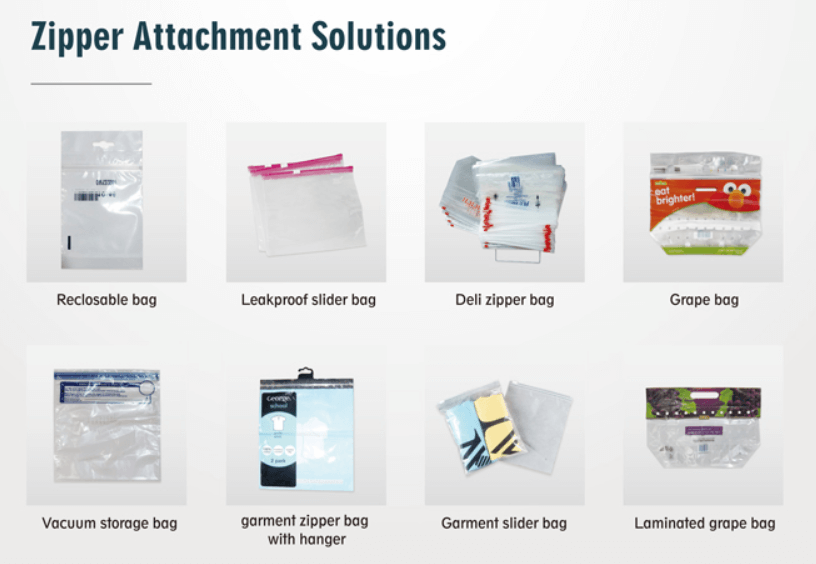

Zipper Profile Insertion & Attachment

Regular blown film

Co-extrusion Zipper Profile Extruder
Model	Screw diameter	Screw length L/D	Heater cap. (kw)	Main motor	Max. extrusion output (kgs/hr)	Auto temp. controller	Machine dimension L x W x H (cm)
PL45INLL	Ø45	01:30	17	AC 10HP	20-80M	5 points	600 x 100 x 170
PL45INLL-AB	Ø45+Ø25	01:30	22	AC 10HP	20-80M	8 points	600 x 100 x 170

High-speed Zipper Film Extruder
Model	Screw diameter (mm)	Screw length L/D	Film blown width (mm)	Film blown thickness (mm)	Line speed (M/min)	Auto temp. controller	Main motor	Takeout motor	Machine dimension L x W x H (cm)
LD45-Z	45mm	01:30	100-350	0.04-0.125	4-12	5 points	10HP	1HP	440 x 130 x 400
LD55-Z	55mm	01:30	180-600	0.04-0.125	4-12	5 points	16HP	1HP	440 x 160 x 400

Available Standard Die Heads
Die diameter (mm)	Ø60	Ø70	Ø80	Ø100	Ø120	Ø150	Ø180
Single bag film width (mm)	60-85	60-85	85-120	120-160	160-200	200-240	240-280

Die diameter (mm)	Ø200	Ø220	Ø250	Ø270	Ø300	Ø320	Ø330
Single bag film width (mm)	280-320	320-360	360-400	400-440	440-480	480-520	480-520

Die diameter (mm)	Ø60	Ø70	Ø80	Ø100	Ø120	Ø150	Ø180
Double bag film width (mm)	10-25 x 2	10-25 x 2	25-45 x 2	45-65 x 2	65-85 x 2	85-105 x 2	105-125 x 2

Die diameter (mm)	Ø200	Ø220	Ø250	Ø270	Ø300	Ø320
Double bag film width (mm)	125-145 x 2	145-165 x 2	165-185 x 2	185-205 x 2	205-225 x 2	225-260 x 2
