Ultrasonic Aluminum Foil Welding Module KWAS-0935

分类: Ultrasonic Metal Welding Machine

京华超音波股份有限公司

国家: 台湾

电话: 886-2-22980299

联络人: 陈俊霖

马上询问

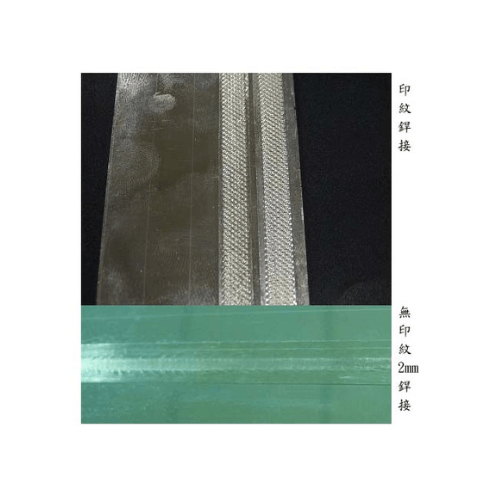

35 Khz ultrasonic module for solar aluminum foil and coating layers welding

1.35 Khz Ultrasonic Auto Frequency Control system
2.The output of Ultrasonic generator is adjustable from 50%～100%

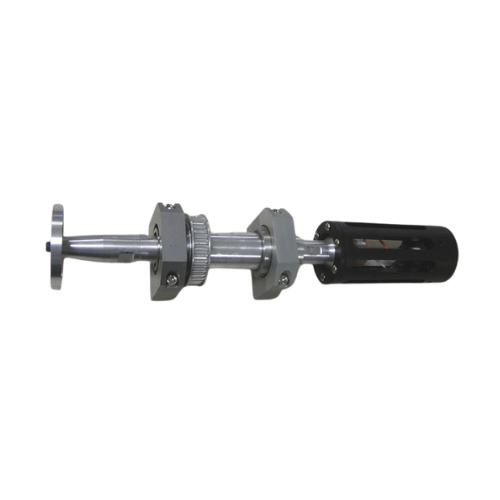

3.Ultrasonic transducer has double -node and roll welding design
4. It can be combined with an automatic machine to add up and down drive and
rotating mechanism such as motor and cylinder.

MODEL		KWAS-0935
SPEC.	OUTPUT POWER	900W
	FREQUENCY	35KHz
	LINE SOURCE	AC220V, 10A, 50/60Hz, 1P
	ULTRASONIC SYSTEM	1. Frequency checking with low woltage on power
		2. Resonance frequency range protection
		3. Frequency overload protection for output power
		4. Resonance frequency display
		5. Automatic frequency control
		6. (50% ~ 100%)amplitude adjustment
		7. Resonance frequency compensation in loading
		8. Frequency compensation for transducer unit at temperature increase
		9. Transducer unit rolling designed of operation
		10. Booster with two nodes equipped with bearing for co-axial rolling operation
		11. Rolling disk, horn & booster by fitted assembly to assure co-axial rolling operation
	MECHANICAL DEVICE	1. Mechanical device (with cylinder) for transducer unit up and down, and roll moving smoothly
		2. Air pressure adjustable valve & indicator
		3. Ultrasonic power on manual switch
		4. Transdurcer unit up & down manual switch
		5. Transducer unit horizontial level adjustment
