曲肘式伺服节能射出成型机

分类: 产品系列
国家: 台湾
电话: 886-6-2330519
传真: 886-6-2330398
联络人: 龙先生
马上询问
<英文 繁體 簡體 西文 日文 阿文 俄文 葡文 法文 德文 全部顯示 規格名稱(繁體): 規格 內文(繁體): >
Model International Size Theoretical Shot Volume Clamping Force Space Between Tie Bars Mould Opening Stroke
Servo 90E 900H-326 183 90 360x360 330
Servo 120E 1200H-435 251 120 395x395 380
Servo 150E 1500H-614 366 150 425x425 430
Servo 190E 1900H-760 491 190 470x470 480
Servo 230E 2300H-958 641 230 515x515 525
Servo 270E 2700H-1423 848 270 555x555 570
Servo 320E 3200H-1703 1062 320 620x620 620
Servo 370E 3700H-2045 1308 370 700x650 670
Servo 470E 4700H-2862 1910 470 770x742 770
Servo 570E 5700H-4462 3083 570 860x800 860

上线状态: 上线离线存  档

节能就等于保护我们的地球

根据不同成型条件,Servo E机台较搭配变量泵或变频器之机台节能达40%以上,与传统固定泵机台比较更可节能60%以上。



LESS VOLUME OF OIL & COOLING WATER CONSUMED

Servo E has no issues of oil heat generation caused by the flow relief valve in the IMM with a fixed pump, or oil draining by the IMM with a variable pump, so a smaller capacity of heat exchange and less volume of cooling water are required. The oil consumption is cut in half so, the oil storage and the cost of refilling are lower. The standard hydraulic design of the logic circuit shortens the response moment of the hydraulics and achieves pressure/speed control precisely.

ECONOMY SERVO ENERGY SAVER

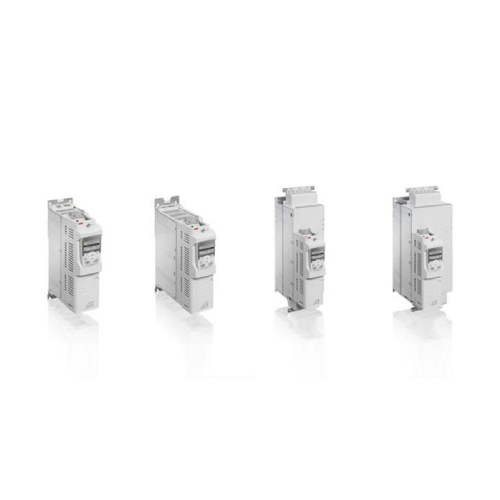

The ASE servo pump unit consists of a servo driver from the global brand ABB, a Taiwanese, synchronous servo motor, and a German internal gear pump from Eckerle/Voith. The pressure is controlled by a proportional valve that is based on closed-loop processes, while the flow is supplied by a rotary speed servo motor, timing the displacement of the gear pump. A detecting encoder tunes the motor RPM to keep the correct speed and to get an exact system flow.


MORE BENEFITS FROM SERVO E MACHINES

Higher Precision: The closed-loop pressure and the flow controller, perfectly, transmit commands and real values for different functions. The controller receives the commands from the PLC. It inspects the real value of the working devices, and then it gives a feedback signal to the PLC for micro-tuning. The linear tolerance and hysteresis for pressure and flow is less than 1%. It substantially improves the precision in the molding.
Stable Operation: A perfect integration of the mechanical, hydraulic and control sections for upgrading the machine performance and the molding reliability.
Sufficient Motor Torque: Even under maximum rotary speed, the servomotor is steadily producing enough torque force to avoid pressure overshoot at the transition from the injection stage to the pressure holding stage.
