分类: 连续式塑胶中空成型机/多层中空成型机
Single-Layer Bottom Blow Moulding Machine for 20L~30L jerry can
Single-head, Single-station
Single-head, Single-station
| Resin |
HDPE (Marlex 50100) |
| Products |

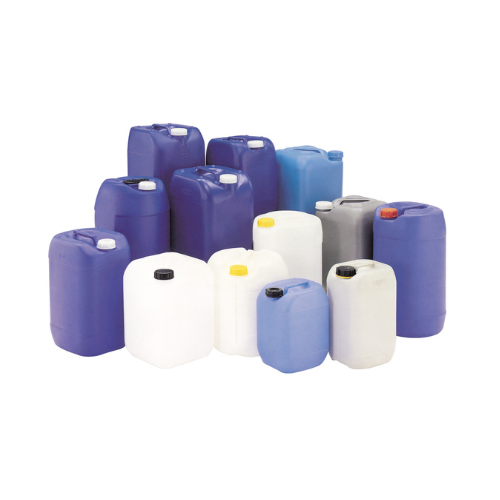

20/25 Liter jerry can |
| production |
120 pcs/hr |
| Driving motor |
75 hp AC motor with inverter control |
| Extruder |
75 mm dia., L/D=30:1 |
| Output |
170 kgs/hr (for HDPE virgin grade) |
| Head design |
Single head |
| Die lip size |
180 mm dia. (max.) |
| Oil hydraulic motor |
25 hp induction motor |
| Clamping plate ( H x W ) | 720 mm x 550 mm |
| Clamping force | 30 tons (300 KN) (max) |
| Clamping stroke | 480 ～1000 mm |
| Mould thickness | 500 mm (Min) |
| Carriage shuttle stroke | 920 mm |
| Tonnage pressure | 180kg/c㎡(max.) |
| Postcooling | Two station, one is combined with deflash position; |
| Deflash | Top/bottom and handle deflash |
