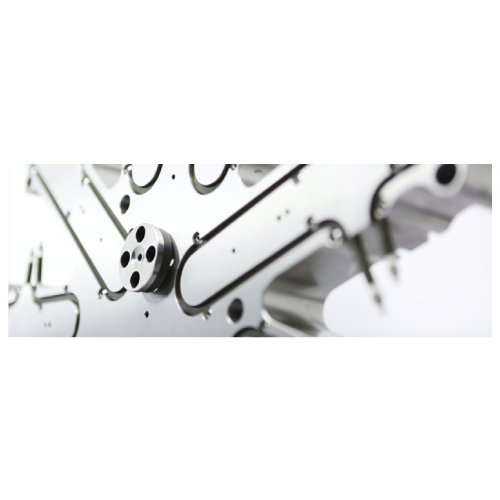

热流板

热流板

分类: 热流道系列

契益有限公司

契益有限公司

国家: 台湾

电话: 886-6-2056-388。

传真: 886-6-2056-399。

联络人: 叶嘉宽先生

马上询问

热流道系列

一穴偏心、两穴"一"形、两穴"T"形、三穴"Y"形、四穴"X"形、四穴"H"型

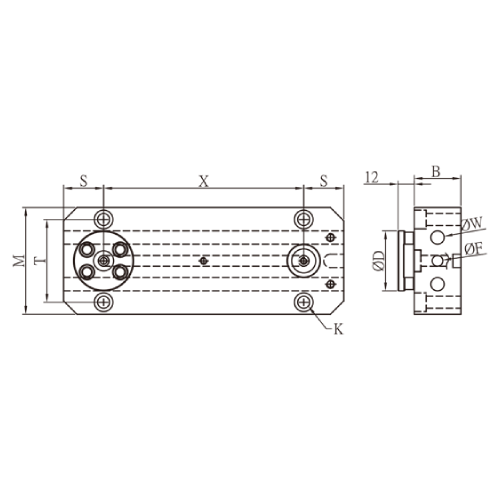

一穴偏心

一穴偏心

SERIES	M	T	S	B	K	ØD	ØF	ØW	X
CMI-080	80	60	40	35	M8	45	6/8	10	---
CMI-090	90	70	40	40	M8	45	10/12	12.7	---
CMI-100	100	80	50	45	M8	50	16/18	12.7	---

两穴"一"形

两穴"一"形

SERIES	M	T	S	B	K	ØD	ØF	ØW	X
CMI-080	80	60	40	35	M8	45	6/8	10	---
CMI-090	90	70	40	40	M8	45	10/12	12.7	---
CMI-100	100	80	50	45	M8	50	16/18	12.7	---

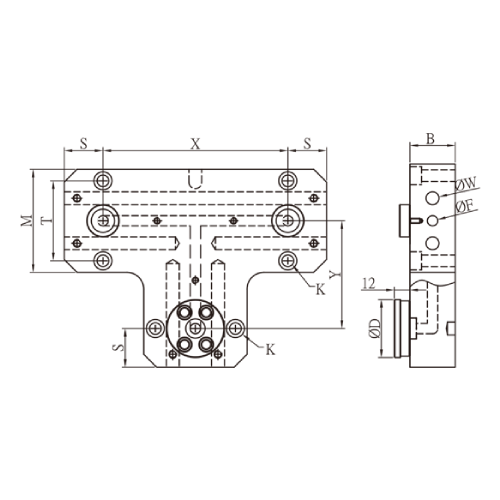

两穴"T"形

两穴"T"形

SERIES	M	T	S	B	K	ØD	ØF	ØW	X
CMI-080	80	60	40	35	M8	45	6/8	10	---
CMI-090	90	70	40	40	M8	45	10/12	12.7	---
CMI-100	100	80	50	45	M8	50	16/18	12.7	---

三穴"Y"形

三穴"Y"形

SERIES	M	T	S	B	K	ØD	ØF	ØW	X1	X2	Y
CMY-080	80	60	40	35	M8	45	6/8	10	---	---	---

CMY-090	90	70	40	40	M8	45	10/12	12.7	---	---	---

CMY-100	100	80	50	45	M8	50	16/18	12.7	---	---	---

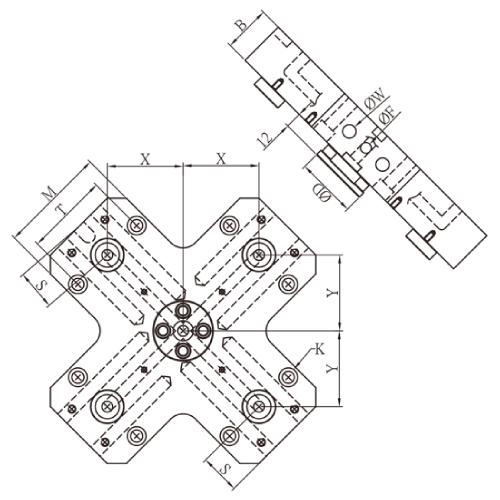

四穴"X"形

四穴"X"形

SERIES	M	T	S	B	K	ØD	ØF	ØW	X	Y
CMY-080	80	60	40	35	M8	45	6/8	10	---	---
CMY-090	90	70	40	40	M8	45	10/12	12.7	---	---
CMY-100	100	80	50	45	M8	50	16/18	12.7	---	---

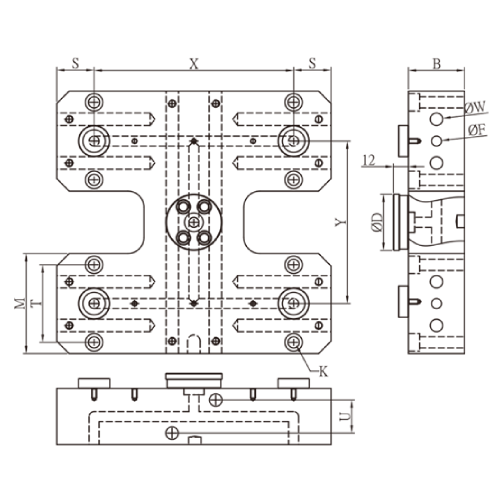

四穴"H"型

四穴"H"形

SERIES	M	T	S	B	K	ØD	ØF	ØW	U	X	Y
CMH-080	80	60	40	35	M8	45	6/8	10	26	---	---
CMH-090	90	70	40	40	M8	45	10/12	12.7	31	---	---
CMH-100	100	80	50	45	M8	50	16/18	12.7	36	---	---

热流道系列

一穴偏心、两穴"一"形、两穴"T"形、三穴"Y"形、四穴"X"形、四穴"H"形、八穴"H2"形

一穴偏心

一穴偏心

SERIES	M	T	A	S	B	K	ØD	ØF	ØW	X
HMI-080	80	60	50	30	40	35	M8	45	6/8	---

HMI-090	90	70	60	40	40	38	M8	45	10/12	---

HMI-100	100	80	70	50	50	40	M8	50	16/18	---

两穴"一"形

两穴"一"形

SERIES	M	T	A	N	S	B	K	ØD	ØF	X
HMI-080	80	60	50	30	40	35	M8	45	6/8	---

HMI-090	90	70	60	40	40	38	M8	45	10/12	---

HMI-100	100	80	70	50	50	40	M8	50	16/18	---

两穴"T"形

两穴"T"形

SERIES	M	T	A	N	S	B	K	ØD	ØF	X	Y
HMI-080	80	60	50	30	40	35	M8	45	6/8	---	---

HMI-090	90	70	60	40	40	38	M8	45	10/12	---	---

HMI-100	100	80	70	50	50	40	M8	50	16/18	---	---

三穴"Y"形

三穴"Y"形

SERIES	M	T	A	N	S	B	K	ØD	ØF	X	Y
HMI-080	80	60	50	30	40	35	M8	45	6/8	---	---

HMI-090	90	70	60	40	40	38	M8	45	10/12	---	---

HMI-100	100	80	70	50	50	40	M8	50	16/18	---	---

四穴"X"形

四穴"X"形

SERIES	M	T	A	N	S	B	K	ØD	ØF	X	Y
HMX-080	80	60	50	30	40	35	M8	45	6/8	---	---

HMX-090	90	70	60	40	40	38	M8	45	10/12	---	---

HMX-100	100	80	70	50	50	40	M8	50	16/18	---	---

四穴"H"形

四穴"H"形

SERIES	M	T	A	N	S	B	K	ØD	ØF	X	Y
HMH-080	80	60	50	30	40	35	M8	45	6/8	---	---

HMH-090	90	70	60	40	40	38	M8	45	10/12	---	---

HMH-100	100	80	70	50	50	40	M8	50	16/18	---	---

八穴"H2"形

八穴"H2"形

SERIES	M	T	A	N	S	B	K	ØD	ØF	X	X1	Y
HMH2-080	80	60	50	30	40	35	M8	45	6/8	---	---

HMH2-090	90	70	60	40	40	38	M8	45	10/12	---	---	---

HMH2-100	100	80	70	50	50	40	M8	50	16/18	---	---	---
