锤头联合压力变送器

分类: Viatran/ 油壬压力变送器

MITSUDELL CO.,LTD.

国家: 台湾

电话: 886-4-2631-3001

传真: 886-4-2631-7717

联络人: Harrison Chang

马上询问

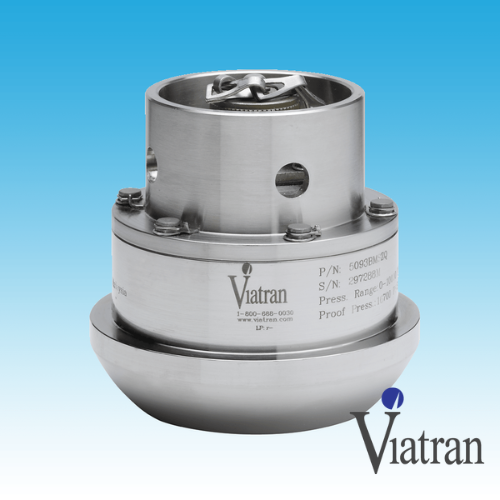

Viatran’s Hammer Union Pressure Transmitters offer superior construction and the rugged performance that we have built our reputation on. Our new generation of Hammer Union Pressure Transmitters incorporate more user-friendly features and optional add-on features than ever before.

Potential applications include Drilling, Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing, Mud Pumps, New Well development. Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.

特性

1502 Hammer Union Pressure Fitting

RoHS Compliant

分路校准

IP-68防护等级

适于高压应用

性能

满量程压力范围

0-5K, 0-6K, 0-10K, 0-15K, 0-20K PSIS

综合精度 (BFSL)

（非线性误差、迟滞性和重复性）≤ ± 0.25% FSO

满量程输出 (FSO)

16.00 mA ±1% FSO @70°F

零点平衡

4 mA ±1% FSO @70°F

补偿温度范围

-40°F to 140°F (4°C to 60°C)

工作环境温度范围

-40°F to 185°F (-40°C to 85°C)

存储温度范围

-67°F to 302°F (-55°C to 150°C)

Long Term Stability (%FSO)

≤ ± .25% FSO 每6个月

零点温度漂移

≤± 1% FSO per 100°F （典型值）

量程温度漂移

≤± 1% FSO per 100°F （典型值

1502 Hammer Union Pressure Fitting

RoHS Compliant

分路校准

RapidShip - 2 Day Turnaround

Features

1502 Hammer Union Pressure Fitting

Performance

Full Scale Pressure Range: 0-5K, 10K, 15K, 20K PSIG (0-345, 689, 1034, 1379 bar)

Combined Accuracy (BFSL): (Non-Linearity, Hysteresis & Repeatability) ≤± 0.25% FSO

Full Scale Output (FSO): 16 mA ±1% FSO

Zero Balance: 4 mA ±1% FSO

Long-Term Stability: ≤±0.25% FSO per 6 months

Response Time: ≤2.5 mSec to reach 90% of FSO

Compensated Temperature: -20°F to 185°F (-29°C to 85°C)

Operating Temperature: -40°F to 200°F (-40°C to 93°C)

Storage Temperature Limits: -67°F to 302°F (-55°C to 150°C)

Temperature Effect on Zero: ≤±1% FSO per 100°F (37°C)

Temperature Effect on Span: ≤±1% FSO per 100°F (37°C)

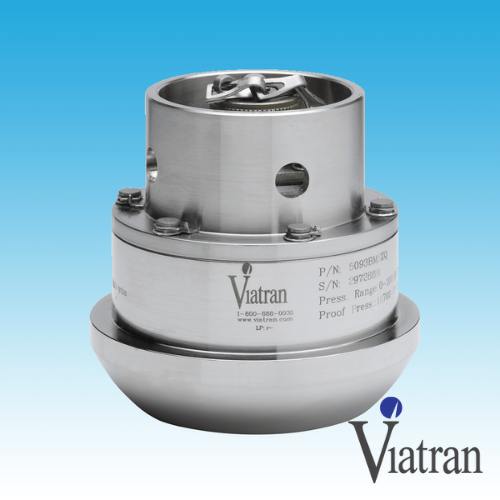

521 is Viatran’s state of the art hammer union pressure transmitter with industry exclusive features that were developed in direct response to requests from the field. Included in these features is a voltage powered shunt cal, ability to calibrate and track pressure spikes using HART software and packaged in a patented housing which can withstand extreme vibration and abusive impact and still perform to specification.

Features

2002 Hammer Union Pressure Fitting

Many Options available

ShuntCal

RoHS Compliant

High-Pressure Applications

Specifications

Expanded compensated temperature range

Improved sealing method for connector pins

External adjust, identification and peak pressure capture

RoHS compliant

Shunt calibration

Potential applications include Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing, Mud Pumps, New Well development, Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.

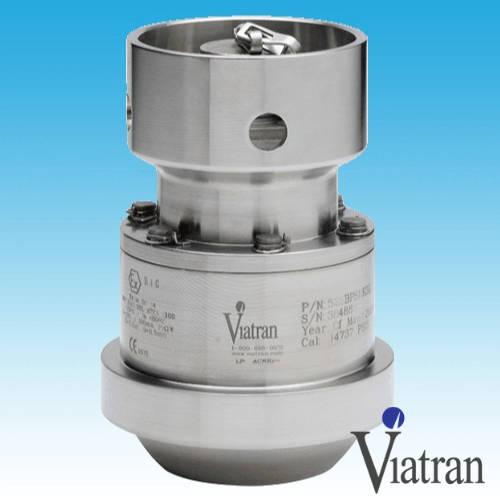

Viatran’s new Model 522 Hammer Union Pressure Transmitter offers superior construction and the rugged performance that we have built our reputation on. This new generation of Hammer Union Pressure Transmitters incorporates more user friendly features and optional add-on features than ever before.

Features

2202 Hammer Union Pressure Fitting

Many Options available

RoHS Compliant

Specification

Designed for use in oil well high pressure pumping applications, these accurate yet rugged instruments are ideally suited to the harsh oil field environment.

Potential applications include Acidizing, Choke Manifolds, Extraction, Fracturing and Cementing,Mud Pumps, New Well development, Nitrogen Injection, Service and Cement Trucks, Standpipe, Stimulation and Well head measurement.

External Calibration Software Available

Viatran is now able to offer the DevCom 2000-LT Desktop Software for calibration of our 522 Hammer Union Pressure Transmitters.

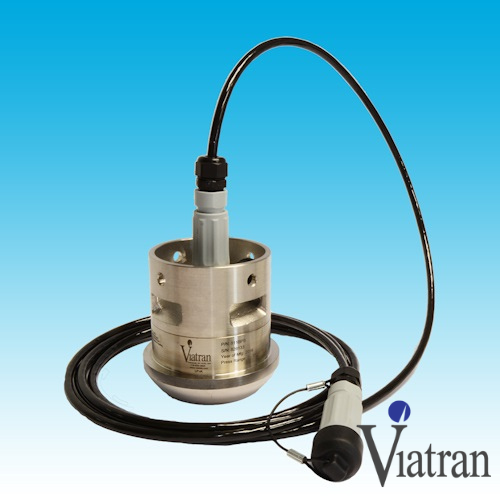

811 is Viatran’s state of the art hammer union pressure transducer with a millivolt output that was developed in direct response to requests from the field. Built with a patented* housing which can withstand extreme vibration, abusive impact and will continue to perform to specification.
Ruggedized Connector Cables sold separately.
