全自动押出中空吹气成型机FS-40PDDL-75

分类: 全自动押出中空吹气成型机
国家: 台湾
电话: 886-4-22765071
传真: 886-4-22765070
联络人: 黄小姐
马上询问

<• 多層共押出式中空吹氣成型機,以單模架或雙模架機型,搭配單模頭至多模頭之多層共押出模頭設計;適合吹塑由二層至六層之塑膠容器,例如農藥瓶、蕃茄醬瓶和化妝品瓶等。多層共押出技術採用鍑鑫特殊設計之模頭,讓不同屬性之塑料結合。 >
• 共押出技术可结合不同的塑料,如外层为亮面层,内层为阻隔层,并以接合层将内外结合以达到所需之塑料特性及成效。
• 多层共押出应用为鍑鑫引领之先进技术。

EXPOSITION OF FULL SHINE'S MACHINE MODEL
  SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS- 40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
55 (O) Standard / Oblique (T) Three Mold Heads   (D) Two Layers
65 (A) Pneumatic (F) Four Mold Heads   (T) Three Layers
75 (L) Frontal (E) Eight Mold Heads   (F) Four Layers
80 (I) Lateral     (L) Six Layers
90       (V) View Stripe
100       (P) PC baby bottle
Example
FS- 65 P D S D



Model FS-40 PSSD FS-45 PSSD FS-55 PSSD FS-65 PSSD FS-75 PSSD FS-55 PSSC FS-65 PSSC FS-75 PSSC
Style Double/single die head/single die holder Double color/single head single mold frame
1 Use plastic   PE PE PE PE PE PE PE PE
2 Screw diameter m/m 40/25 45/25 55/25 65/25 75/25 55/55 65/65 75/75
3 Screw ratio L/D 24/1 24/1 24/1 24/1 24/1 24/1 24/1 24/1
4 Screw speed r.p.m. 20-66 15-61 15-60 15-60 15-58 15-60 15-60 15-58
5 Inverter motor HP 5/2 7.5/2 10/2 15/2 25/2 10/10 15/15 25/25
6 Pump drive horsepower HP 5 7.5 10 10 15 10 10 15
7 Air compressor with horsepower HP 5 5 7.5 7.5 10 7.5 7.5 10
8 air pressure Kg/cm2 4-6 4-6 5-7 5-7 5-7 5-7 5-7 5-7
9 Clamping pressure Ton 2.8 3.9 4.4 6.9 10 4.4 6.9 10
10 Fuel tank capacity Gallon 38 55 60 80 120 60 80 120
11 Heating points ZONE 6 6 6 7 7 6 6 7
12 Heating capacity KW 9.5 12 15 19.5 22 19 24.5 26
13 Total power KW 19 25 32 40.5 44 43 56 77
14 Extrusion amount Kg/hr 15 24 42 55 75 42 55 75
15 Empty cycle per hour time/hr 1285 1030 880 720 650 880 720 600
16 Product capacity c.c./L 15-500 60-1000 150-2500 1L-5L 1L-10L 150-2500 1L-5L 1L-10L
17 product weight g. 5-40 10-100 20-170 40-280 80-500 20-170 40-280 80-500
18 Maximum and minimum product diameter m/m 10-75 20-100 30-140 50-200 80-260 30-140 50-200 80-260
19 Die mouth diameter m/m 50 56 80 150 200 80 150 200
20 Mold center distance m/m * * * * * * * *
21 Open and close mold limit m/m 50-320 50-410 140-540 160-670 50-410 140-540 160-670 160-670
22 Die length m/m 146-266 155-290 160-380 223-426 155-290 160-380 223-426 240-460
23 Die width m/m 300 320 360 430 320 360 430 430
24 Machine net weight Kg 3300 3800 4700 7600 3800 4700 7600 7300
25 Machine size m 2.6*1.85*2.7 3*1.9*2.8 3.1*2*2.8 3.6*1.6*3.1 4.2*1.7*3.2 3.1*2*2.8 3.6*1.6*3.1 4.2*1.7*3.2

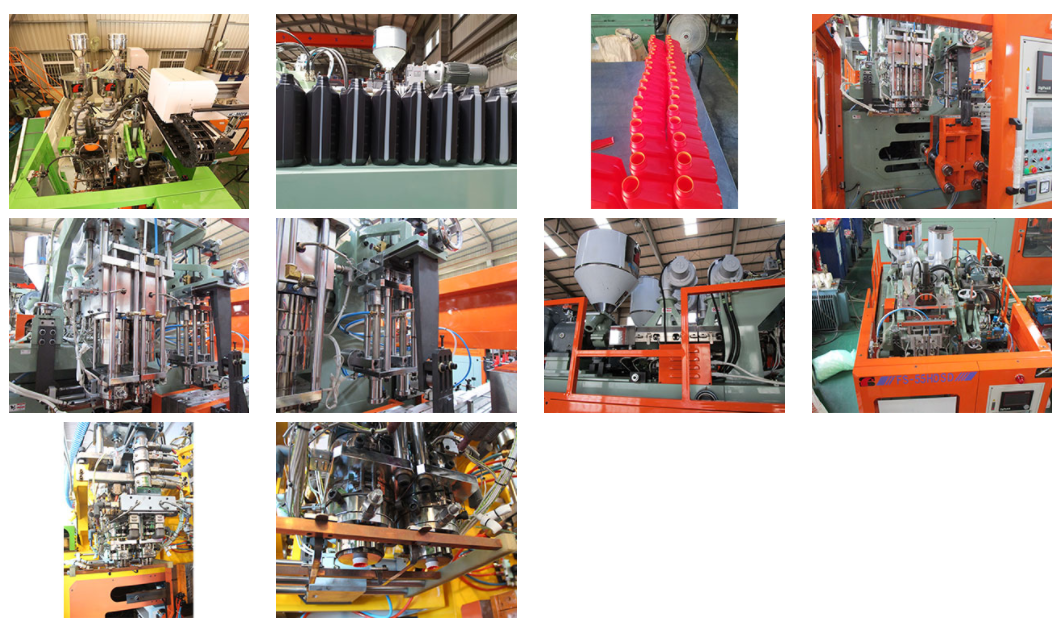

PHOTOS

Top view side of co-extrusion 2 layers blow molding machine

PHOTOS

2 layers co extrusion bottles with view stripe line

PHOTOS

Machine photo co-extrusion 2 layers blow molding machine

PHOTOS

2 layers co-extrusion double die head

PHOTOS

Blow pin unit

PHOTOS

Barrel and screw set with fans

PHOTOS

2 layers co-extrusion double die head

PHOTOS

Top view side of co-extrusion 2 layers blow molding machine

PHOTOS

3 layers co-extrusion double die head

PHOTOS

3 layers co-extrusion double die head with hot cutter

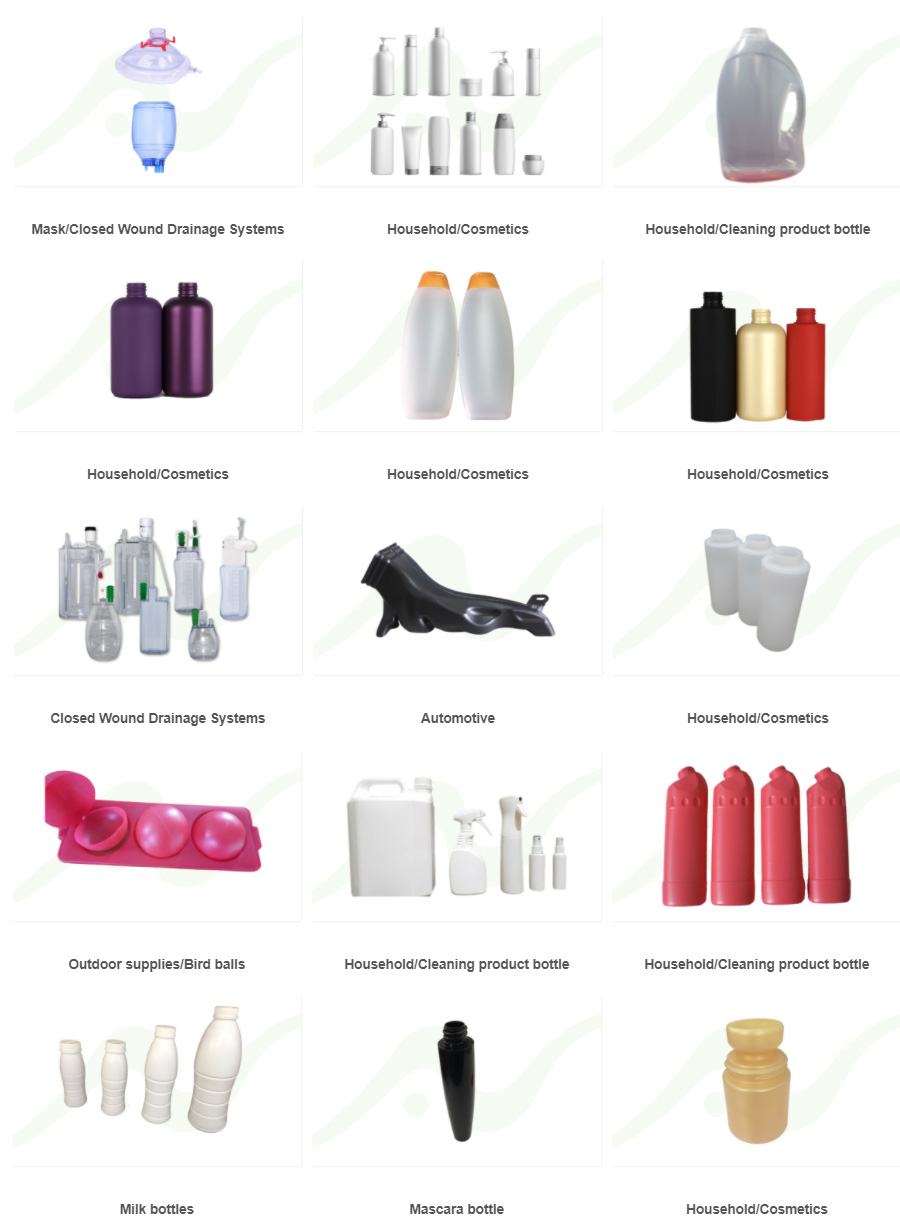

氧氣面罩/真空傷口引流罐

Mask/Closed Wound Drainage Systems

居家/家用品/美容用品

Household/Cosmetics

居家/家用品/清潔用品

Household/Cleaning product bottle

居家/家用品/美容用品

Household/Cosmetics

居家/家用品/美容用品

Household/Cosmetics

真空傷口引流罐

Closed Wound Drainage Systems

Toys

Toys

汽車配件

Automotive

居家/家用品/美容用品

Household/Cosmetics

戶外用品

Outdoor supplies/Bird balls

居家/家用品/清潔用品

Household/Cleaning product bottle

農藥/化工瓶

Agro/ Chemical bottle

農藥瓶子

Pesticide bottle

居家/家用品/美容用品

Household/Cosmetics

20L桶子

Jerry Can Making Machine

睫毛膏瓶子

Mascara bottle
