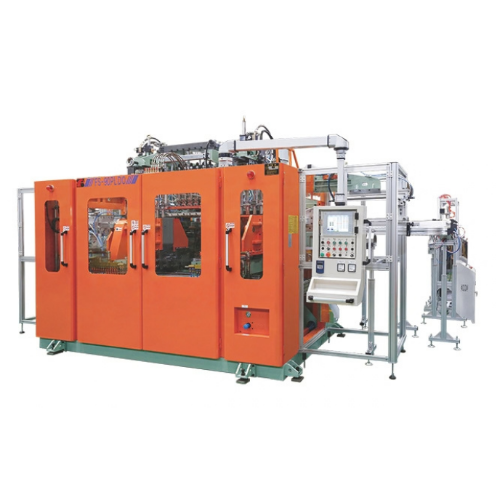

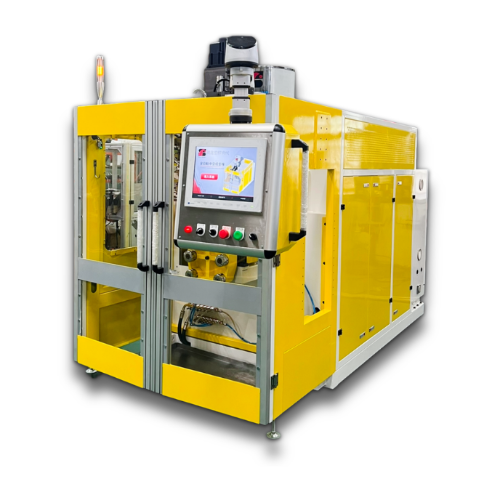

全自动押出中空吹气成型机FS-75HDSD

分类: 全自动押出中空吹气成型机
国家: 台湾
电话: 886-4-22765071
传真: 886-4-22765070
联络人: 黄小姐
马上询问
• HMI触控式电脑萤幕(选配),搭配PLC电控系统,修改容易,方便于当地维护。
• 开闭模采用圆型钢柱导杆形式,平移式移模以德制线型滑轨为基础滑动运作方式。
• 螺杆传动方式采直结式德制齿轮箱搭配变频马达驱动。
• 仰头式模头作动方式,使下料迅速,避免沾黏模具。
• 吹气座配置快速移动变换位置功能,以油压马达驱动,以利模具更换、节省时间,此功能属创新便捷设计。
SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS-40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
FS-45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
FS-55 (O) Standard / Oblique (T) Three Mold Heads (D) Two Layers
FS-65 (A) Pneumatic (F) Four Mold Heads (T) Three Layers
FS-75 (L) Frontal (E) Eight Mold Heads (F) Four Layers
FS-80 (I) Lateral (L) Six Layers
FS-90 (V) View Stripe
FS-100 (P) PC baby bottle
Example
FS-65 P D S D
MODEL FS-40 HSSO FS-45 HSSO FS-55 HSSO FS-65 HSSO FS-75 HSSO
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 7.5 7.5 10 15 25
Oil hydraulic drive motor(HP) 5 7.5 10 10 15
Optional air compressor(HP) 5 5 7.5 7.5 10
Air pressurer(kg/cm2) 4-6 4-6 4-6 5-7 5-7
Clamping force(Ton) 1.5 3.9 4.4 5.6 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 5 4 4 6 5
Heating capacity(KW) 8 9.5 12.5 16.8 18
Total installed power(KW) 18 21 30 35 48
Extruding capacity per hour(kg/hr) 15 24 36 55 75
Dry cycle per hour(time/hr) 1285 1030 880 720 650
Product capacity(c.c./L) 15-500 60-1000 150-2500 500-5000 1L-10L
Product weight(g.) 5-40 10-100 20-170 40-280 80-500
Min./Max. diameter of product(m/m) 10-75 20-100 30-140 50-200 80-260
Extruding mouth outer diameter(m/m) 50 56 80 150 200
Mold center distance(m/m) * * * * *
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 100-300 126-232 156-292 200-400 236-452
Width of mold capacity(m/m) 300 300 350 420 480
Machine net weight(kg) 2300 2800 3300 4200 7100
Machine dimension(m) 2.9*1.37*2.3 3*1.4*2.3 3*1.5*2.3 3.6*1.6*2.6 4.2*1.7*2.7
MODEL FS-40 HDSO FS-45 HDSO FS-55 HDSO FS-65 HDSO FS-75 HDSO
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 5 7.5 10 15 40
Oil hydraulic drive motor(HP) 5 7.5 10 10 20
Optional air compressor(HP) 5 5 7.5 7.5 10
Air pressurer(kg/cm2) 4-6 4-6 4-6 5-7 5-7
Clamping force(Ton) 2.8 3.9 4.4 5.6 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 6 6 7 9 9
Heating capacity(KW) 7.5 10.25 13.6 17.5 25
Total installed power(KW) 15.5 22 33 45 56
Extruding capacity per hour(kg/hr) 15 24 36 55 85
Dry cycle per hour(time/hr) 1285 1030 880 720 650
Product capacity(c.c./L) 15-200 40-500 100-1250 280-1800 0.5L-2.5L
Product weight(g.) 4-25 5-40 10-100 20-170 40-170
Min./Max. diameter of product(m/m) 10-65 20-70 30-85 40-100 40-130
Extruding mouth outer diameter(m/m) 38 42 50 65 80
Mold center distance(m/m) 85 100 120 160 250
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 100-210 126-232 156-292 200-400 236-452
Width of mold capacity(m/m) 230 300 350 420 480
Machine net weight(kg) 2400 3000 3400 4400 7300
Machine dimension(m) 2.3*1.4*2.2 3*1.4*2.3 3*1.5*2.3 3.8*2.1*2.6 4.3*3*2.9
MODEL FS-40 HTSO FS-45 HTSO FS-55 HTSO FS-65 HTSO FS-75 HTSO
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 5 7.5 10 15 25
Oil hydraulic drive motor(HP) 5 7.5 10 10 15
Optional air compressor(HP) 7.5 7.5 10 10 15
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7 5-7
Clamping force(Ton) 2.8 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 8 8 9 10 10
Heating capacity(KW) 8.5 12 15 19.3 21.5
Total installed power(KW) 16.5 23.5 32 47 52.5
Extruding capacity per hour(kg/hr) 15 24 36 55 75
Dry cycle per hour(time/hr) 1250 1000 850 720 650
Product capacity(c.c./L) 10-125 20-325 40-825 100-1000 180-1500
Product weight(g.) 3-10 5-25 10-50 10-90 15-145
Min./Max. diameter of product(m/m) 10-45 20-55 30-55 30-80 30-95
Extruding mouth outer diameter(m/m) 30 37 40 55 80
Mold center distance(m/m) 75+75 85+85 100+100 120+120 120+120
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 100-210 126-232 156-292 200-380 236-452
Width of mold capacity(m/m) 230 300 350 420 480
Machine net weight(kg) 2600 3200 3700 4700 7600
Machine dimension(m) 2.3*1.4*2.2 3*1.4*2.3 3*1.5*2.3 3.8*2.1*2.6 4.2*1.7*2.7
MODEL FS-55 HFSO FS-65 HFSO FS-75 HFSO FS-90 HFSO
Material PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 55 65 75 90
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58 15-58
Inveter motor(HP) 15 20 30 50
Oil hydraulic drive motor(HP) 10 10 15 15
Optional air compressor(HP) 15 15 20 20
Air pressurer(kg/cm2) 6-8 6-8 6-8 6-8
Clamping force(Ton) 4.4 5.6 10 13
Oil tank capacity(Gallon) 60 80 120 250
Nunber of heaters(ZONE) 11 17 13 15
Heating capacity(KW) 16.5 21.3 25.7 30
Total installed power(KW) 37.5 47 61 80
Extruding capacity per hour(kg/hr) 36 55 75 10
Dry cycle per hour(time/hr) 750 750 650 650
Product capacity(c.c./L) 30-300 100-500 300-1000 500-2500
Product weight(g.) 10-25 10-40 15-90 40-170
Min./Max. diameter of product(m/m) 20-55 30-55 30-90 30-90
Extruding mouth outer diameter(m/m) 37 42 50 75
Mold center distance(m/m) 90+90 90+90 120+120 120+120
Clamping distance(m/m) 140-410 150-540 160-670 160-670
Length of mold capacity(m/m) 156-292 200-380 236-452 250-550
Width of mold capacity(m/m) 380 450 510 550
Machine net weight(kg) 4000 5000 7900 9500
Machine dimension(m) 3.1*1.8*2.3 4.23*2.6*3 4.3*2*2.7 5.2*3.1*3.5
MODEL FS-45 HSDO FS-55 HSDO FS-65 HSDO FS-75 HSDO
Material PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-61 15-60 15-60 15-58
Inveter motor(HP) 7.5 10 15 30
Oil hydraulic drive motor(HP) 7.5 10 10 15
Optional air compressor(HP) 10 15 15 20
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7
Clamping force(Ton) 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 60 80 120 160
Nunber of heaters(ZONE) 4 4 5 5
Heating capacity(KW) 9.5 12.5 16.8 18
Total installed power(KW) 22 28 37 53
Extruding capacity per hour(kg/hr) 24 36 55 75
Dry cycle per hour(time/hr) 1030*2 880*2 720*2 650*2
Product capacity(c.c./L) 40-500 65-1250 150-2500 500-5000
Product weight(g.) 5-40 10-100 20-170 40-280
Min./Max. diameter of product(m/m) 10-75 20-100 30-140 50-200
Extruding mouth outer diameter(m/m) 56 80 150 200
Mold center distance(m/m) * * * *
Clamping distance(m/m) 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 126-232 156-292 200-380 236-452
Width of mold capacity(m/m) 250 300 330 360
Machine net weight(kg) 6400 6900 7400 8300
Machine dimension(m) 3*1.8*2.5 3*1.9*2.5 3.2*2*2.8 4.2*2.1*2.9
MODEL FS-45 HDDO FS-55 HDDO FS-65 HDDO FS-75 HDDO
Material PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-61 15-60 15-60 15-58
Inveter motor(HP) 10 10 15 30
Oil hydraulic drive motor(HP) 7.5 10 10 15
Optional air compressor(HP) 10 15 15 20
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7
Clamping force(Ton) 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 60 80 120 160
Nunber of heaters(ZONE) 6 7 8 8
Heating capacity(KW) 10.25 13.6 17.5 19
Total installed power(KW) 26 30 38 54
Extruding capacity per hour(kg/hr) 32 36 55 75
Dry cycle per hour(time/hr) 1030*2 880*2 720*2 650*2
Product capacity(c.c./L) 30-200 40-500 100-1000 280-2000
Product weight(g.) 4-20 5-40 10-65 20-110
Min./Max. diameter of product(m/m) 10-65 20-70 30-85 40-110
Extruding mouth outer diameter(m/m) 42 50 65 80
Mold center distance(m/m) 100 120 140 160
Clamping distance(m/m) 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 126-232 156-292 200-380 236-452
Width of mold capacity(m/m) 250 300 330 360
Machine net weight(kg) 6500 7000 7500 8500
Machine dimension(m) 3*1.8*2.5 3.2*2*2.8 3.4*3*3 4.2*3.1*3.1
MODEL FS-55 HTDO FS-65 HTDO FS-75 HTDO
Material PE/PP PE/PP PE/PP
Screw diameter(m/m) 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58
Inveter motor(HP) 10 15 30
Oil hydraulic drive motor(HP) 10 10 15
Optional air compressor(HP) 15 15 20
Air pressurer(kg/cm2) 4-6 5-7 5-7
Clamping force(Ton) 4.4 6.9 10
Oil tank capacity(Gallon) 110 120 160
Nunber of heaters(ZONE) 9 10 10
Heating capacity(KW) 15 19.3 21.5
Total installed power(KW) 32 40 56.5
Extruding capacity per hour(kg/hr) 36 55 75
Dry cycle per hour(time/hr) 850*2 720*2 650*2
Product capacity(c.c./L) 15-300 50-600 100-1000
Product weight(g.) 5-25 8-45 10-70
Min./Max. diameter of product(m/m) 10-55 20-70 30-90
Extruding mouth outer diameter(m/m) 40 55 80
Mold center distance(m/m) 85+85 100+100 120+120
Clamping distance(m/m) 140-410 150-540 160-670
Length of mold capacity(m/m) 156-292 200-380 236-452
Width of mold capacity(m/m) 300 330 360
Machine net weight(kg) 7100 7600 8700
Machine dimension(m) 3.4*2*2.8 3.6*3*3 4.4*3.1*3.1
MODEL FS-55 HFDO FS-65 HFDO FS-75 HFDO
Material PE/PP PE/PP PE/PP
Screw diameter(m/m) 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58
Inveter motor(HP) 15 20 30
Oil hydraulic drive motor(HP) 10 10 15
Optional air compressor(HP) 15 15 20
Air pressurer(kg/cm2) 6-8 6-8 6-8
Clamping force(Ton) 4.4 6.9 10
Oil tank capacity(Gallon) 80 120 160
Nunber of heaters(ZONE) 11 13 13
Heating capacity(KW) 16.5 20.8 25.7
Total installed power(KW) 37.5 48 61
Extruding capacity per hour(kg/hr) 36 55 75
Dry cycle per hour(time/hr) 750*2 750*2 650*2
Product capacity(c.c./L) 50-250 100-400 200-600
Product weight(g.) 5-20 10-30 20-50
Min./Max. diameter of product(m/m) 20-55 20-55 20-70
Extruding mouth outer diameter(m/m) 37 42 50
Mold center distance(m/m) 85+85+85 85+85+85 100+100+100
Clamping distance(m/m) 140-410 150-540 160-670
Length of mold capacity(m/m) 156-292 200-380 236-452
Width of mold capacity(m/m) 300 330 360
Machine net weight(kg) 7200 7700 8900
Machine dimension(m) 3.4*2.2*3.1 3.6*2.3*3.2 4.4*3.3*3.3
MODEL FS-40 HSSD FS-45 HSSD FS-55 HSSD FS-65 HSSD FS-75 HSSD
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40/25 45/25 55/25 65/25 75/25
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 5/2 7.5/2 10/2 15/2 25/2
Oil hydraulic drive motor(HP) 5 7.5 10 10 15
Optional air compressor(HP) 5 5 7.5 7.5 10
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7 5-7
Clamping force(Ton) 2.8 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 6 6 6 7 7
Heating capacity(KW) 9.5 12 15 19.5 22
Total installed power(KW) 19 25 32 40.5 44
Extruding capacity per hour(kg/hr) 15 24 42 55 75
Dry cycle per hour(time/hr) 1285 1030 880 720 650
Product capacity(c.c./L) 15-500 60-1000 150-2500 1L-5L 1L-10L
Product weight(g.) 5-40 10-100 20-170 40-280 80-500
Min./Max. diameter of product(m/m) 10-75 20-100 30-140 50-200 80-260
Extruding mouth outer diameter(m/m) 50 56 80 150 200
Mold center distance(m/m) * * * * *
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 126-232 156-292 200-380 236-452 236-452
Width of mold capacity(m/m) 230 300 350 420 480
Machine net weight(kg) 2600 3100 3600 4500 7400
Machine dimension(m) 2.6*1.8*2.7 3*1.9*2.8 3.3*2*2.9 3.6*1.6*3 3.9*2.2*3.1
MODEL FS-55 HSSC FS-65 HSSC FS-75 HSSC
Material PE/PP PE/PP PE/PP
Screw diameter(m/m) 55/55 65/65 7575
Screw L/D ratio(L/D) 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58
Inveter motor(HP) 10/10 15/15 25/25
Oil hydraulic drive motor(HP) 10 10 15
Optional air compressor(HP) 7.5 7.5 10
Air pressurer(kg/cm2) 5-7 5-7 5-7
Clamping force(Ton) 4.4 6.9 10
Oil tank capacity(Gallon) 60 80 120
Nunber of heaters(ZONE) 6 6 7
Heating capacity(KW) 19 24.5 26
Total installed power(KW) 43 56 77
Extruding capacity per hour(kg/hr) 42 55 75
Dry cycle per hour(time/hr) 880 720 600
Product capacity(c.c./L) 150-2500 1L-5L 1L-10L
Product weight(g.) 20-170 40-280 80-500
Min./Max. diameter of product(m/m) 30-140 50-200 80-260
Extruding mouth outer diameter(m/m) 80 150 200
Mold center distance(m/m) * * *
Clamping distance(m/m) 140-540 150-540 160-670
Length of mold capacity(m/m) 200-380 236-452 236-452
Width of mold capacity(m/m) 350 420 480
Machine net weight(kg) 3600 4500 7400
Machine dimension(m) 3.3*2*2.9 3.6*2.1*3 3.9*2.2*3.1
PHOTOSPHOTOSPHOTOSPHOTOSPHOTOS

PHOTOSPHOTOSPHOTOSPHOTOSPHOTOS

PHOTOSPHOTOSPHOTOSPHOTOSPHOTOS

PHOTOS




AIR COOLING CHILLER                                                                                                                        AUTO 2 SIDE LABELING MACHINE


AUTO JAR NECK CUTTING MACHINE                                                                                                    AUTO LOADER


BELT TYPE CONVEYOR                                                                                                                     BLOW MOLD & INJECTION MOLD


CRUSHER                                                                                                                                         HOPPER DRYER


IN MOLD LABELING MACHINE                                                                                                          LEAKING TESTER



MASTER BATCH FEEDER                                                                                                                  MIXER


MOLD TEMPERATURE CONTROLLER                                                                                                     WATER COOLING CHILLER

PRECISE OIL FILTER                                                                                                                                        PROPORTIONAL DEVICE

SERVO MOTOR SYSTEM
