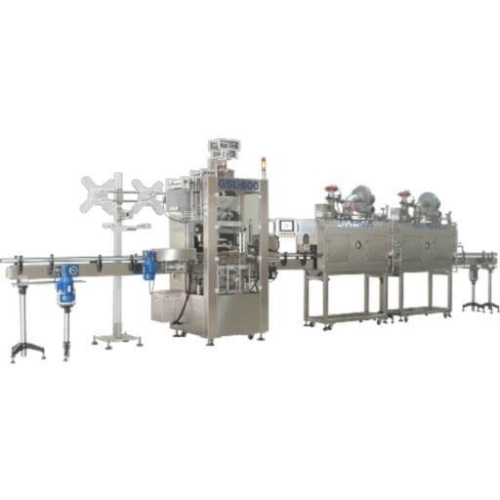

Auto Shrinkable Sleeve Machine-GSL-600

分类: 全自动套标机
国家: 台湾
电话: +886-3-489-0889
传真: +886-3-470-9902
联络人: 李慧蓮
马上询问

◆ Product Detail:
1. For label insertion on containers of sundries, food,beverage, dairy products, and wine, medicines, and industrial products.
2. The labeling system can bottle cap, whole bottle(including cap), bottle body, and bottle body fixed position sleeve applications.


◆ Features & Options

1. Use the latest high speed servo control system with the newest 32 bit micro chip electric-circuit to enable the servo motor stay in its best status and remain its high speed ,stable and precision even under the highest capacity.

2. Adapting newest smart Pro-face digital HMI control for easier operation with an in line supervision function to show the production status.
3. Multi-functional human naturalized design;both the printed shrinkable films and clear films are suitable for this machine.Examine the precise cutting point with sensor or set up length cutting are both available and easy to switch.
4. All the knives/tapers installed are easy to be replaced.

5. Option Equipments:1. Accumulating Unwind.    2. Dryer.


Model

Specifications

GSL-100S

GSL-250

GSL-350

GSL-450

GSL-600

Power

3PHASE 220V/380V 50/60HZ

Speed

100BPM

250BPM

350BPM

450BPM

600BPM

Main Motor Power

1.5 KW

1.5 KW

1.5W

2KW

4KW

Cutter

Ø30-ø65mm/ø65-ø95mm/ø95-ø115mm

Label Lengh

30mm~300mm

Label Material

PVC,PET,OPS

Label Thickness

0.04mm~0.08mm

Machine Dimensons
(L X W X H)

1800x840x2030mm

1800x840x2030mm

1800x840x2030mm

1800x940x2030mm

1800x940x2030
